Rear Wheel Price $3,328.00 USD

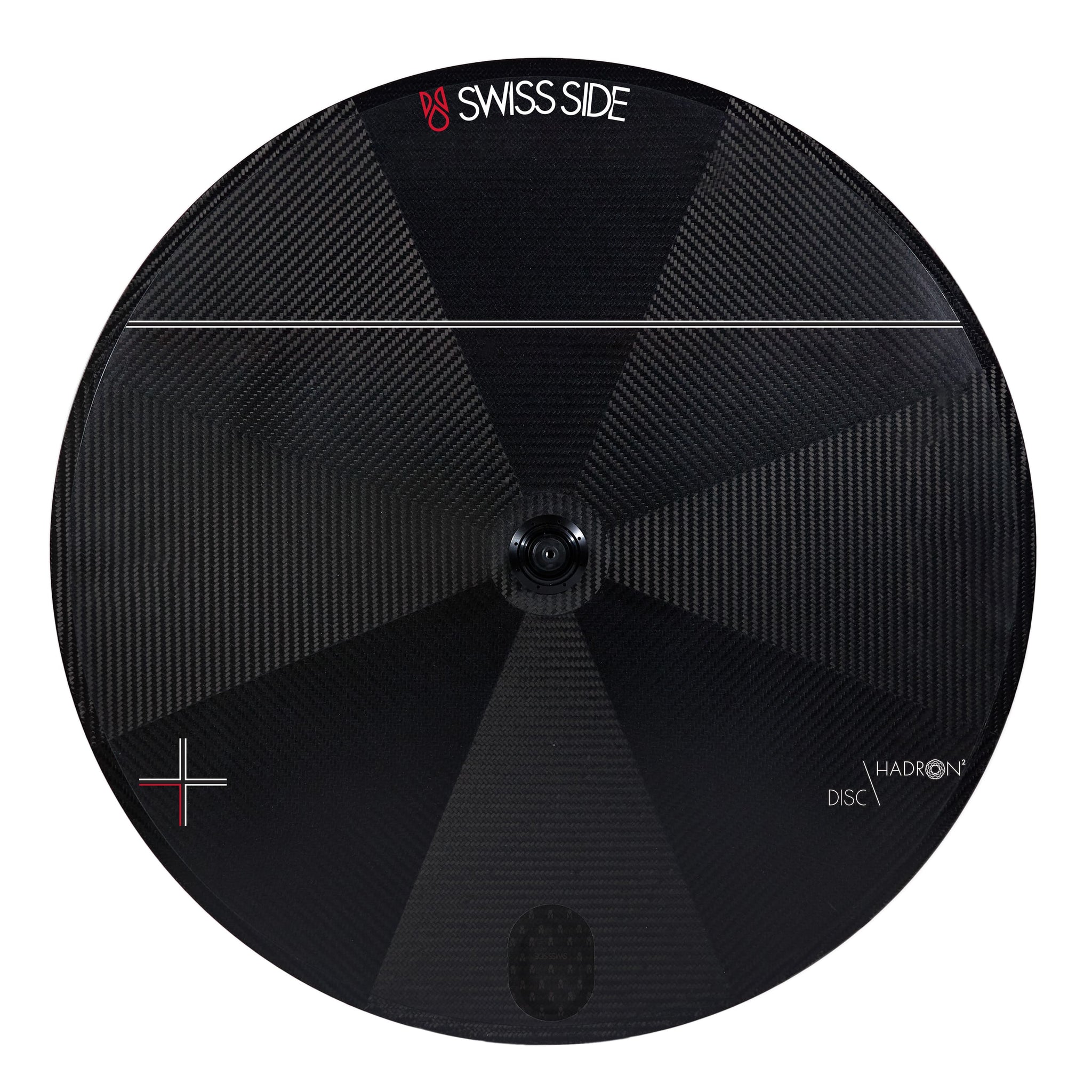

HADRON² DISC Rear Wheel Rim Brake - Red/White Decal

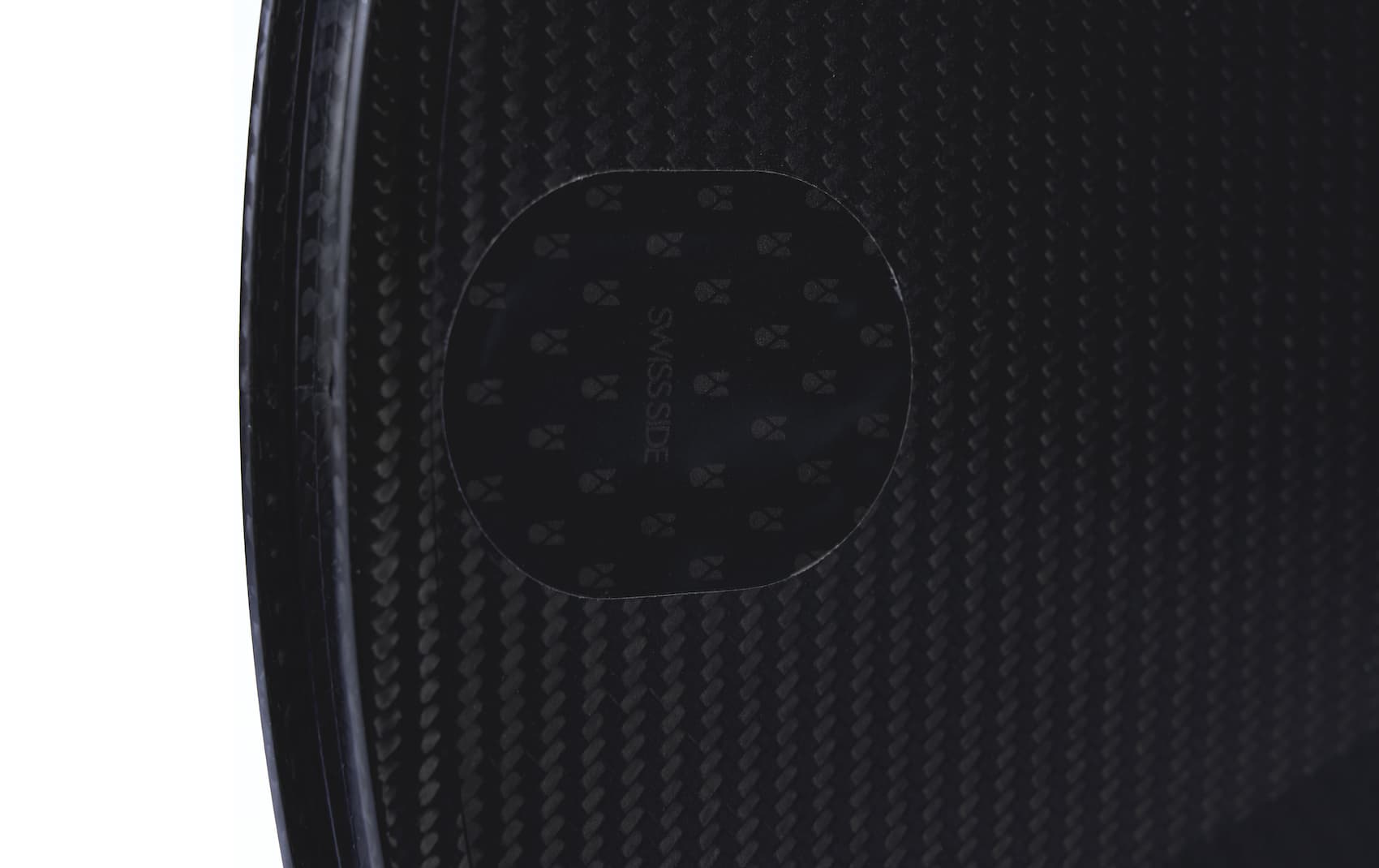

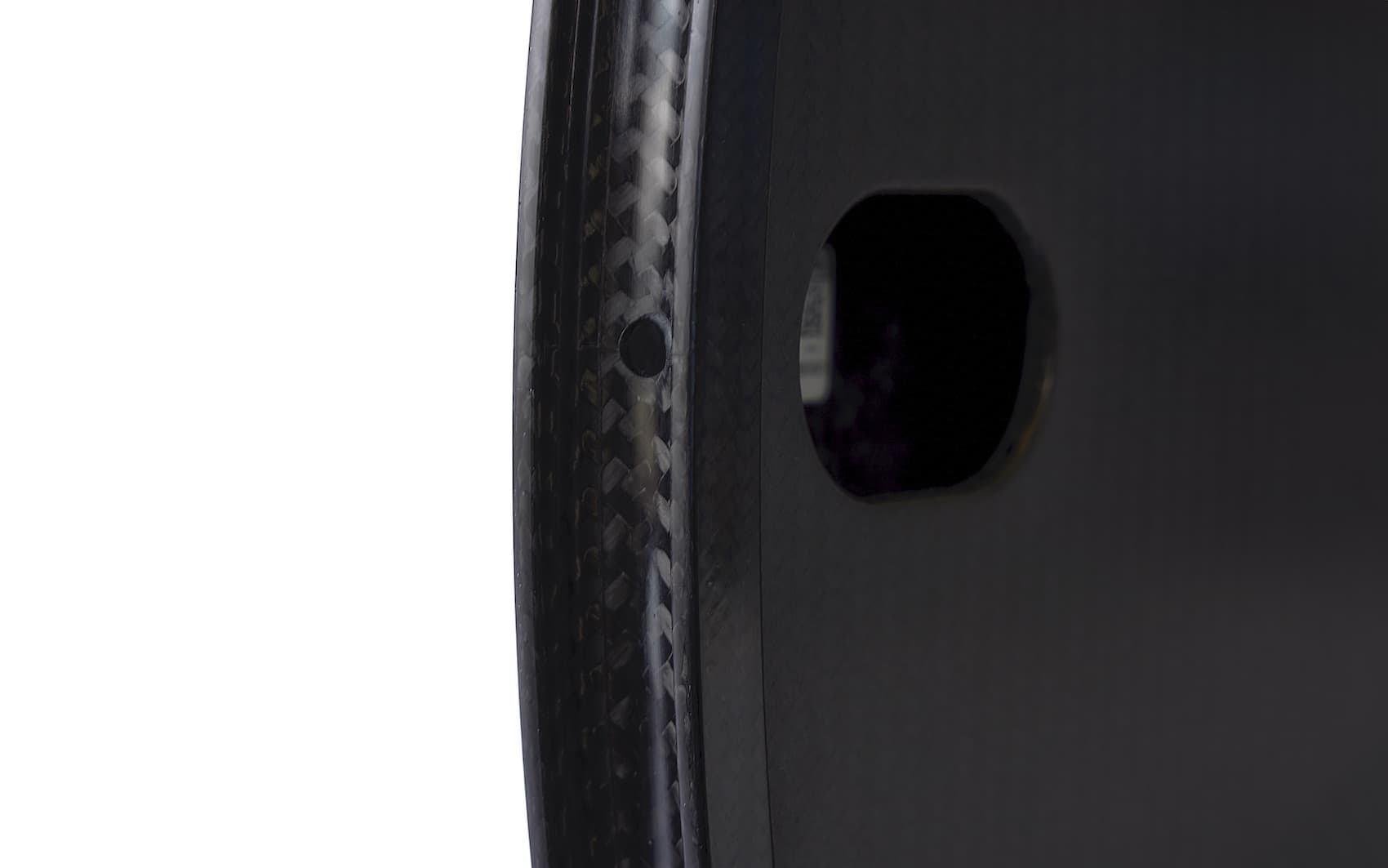

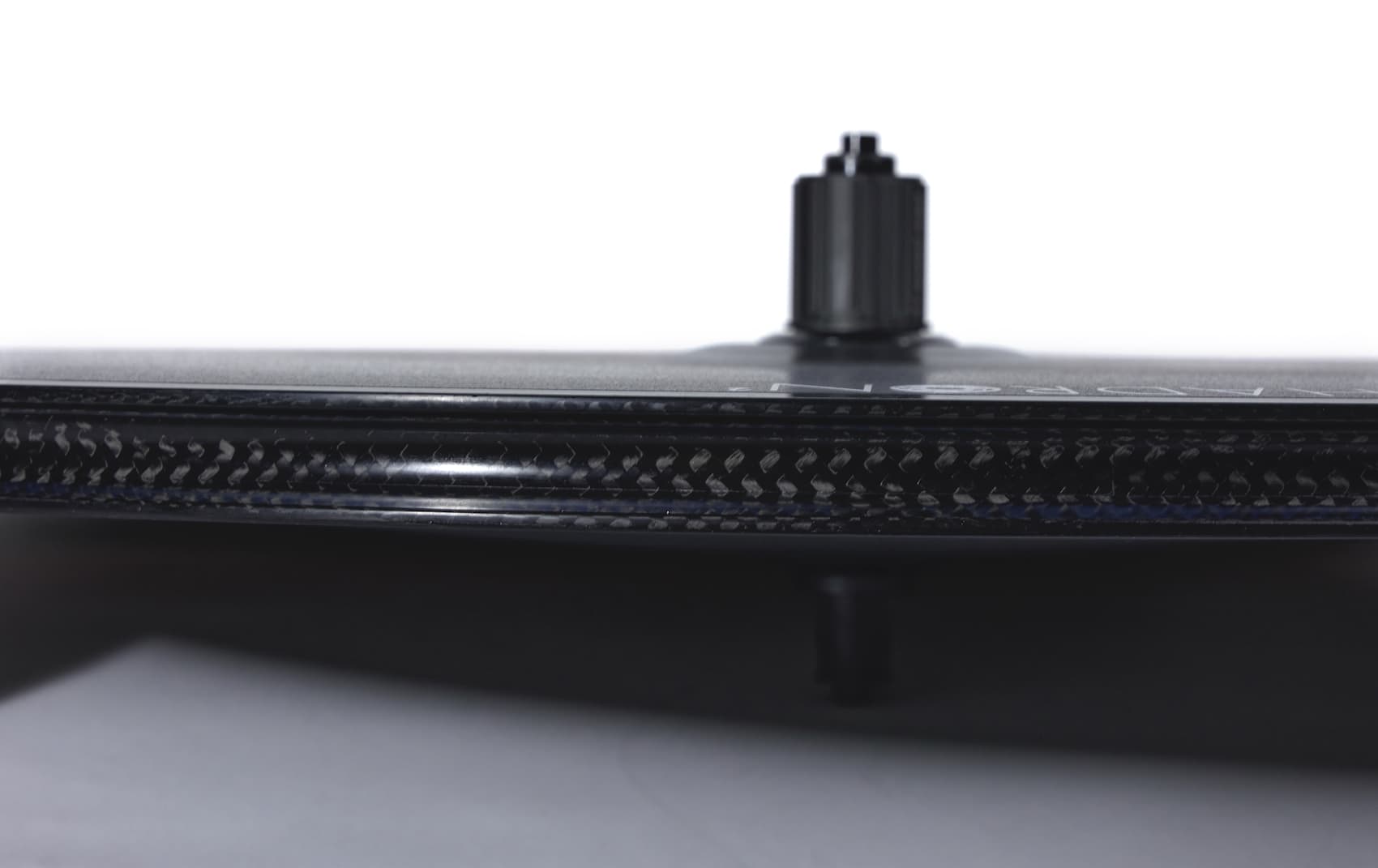

Maximum aerodynamic performance, reduced drag in a straight line and further enhanced sailing effect in the wind. The wheel uses an asymmetrical lenticular shape that is hollow inside, with twin foam sandwich outer walls. It is made exclusively from premium aerospace materials, including T1000 and M46J carbon fibres with high temperature resistant resin systems laid around featherweight Rohacell cores. The end product guarantees minimum weight, maximum stiffness and optimum power transfer. Tubeless ready with a 17 mm inner width to remain compatible with all brake callipers on the market. DT Swiss 180 EXP hub. Total weight 1090 g. Made in Europe. The Swiss Side HADRON² DISC Rear Wheel for Rim Brake is not for sale or use in the USA and/or Canada. Any orders will be cancelled.


Color options available:


Hadron Ultimate Decals

Configure / Buy
Want to buy local?
View Specs
HADRON² DISC Rear Wheel

Brakes / Compability
Rim Depth
Add to Cart

All the products

Brakes
OUT OF STOCK
OUT OF STOCK
Compatibility
Rear Wheel
OUT OF STOCK
OUT OF STOCK
ADD CONTINENTAL GP5000 TYRES & TUBES
Rear Wheel
HADRON² DISC Rear Wheel Rim Brake / Rear DISC Red/White Decal
$3,328.00 USD
Product available.
EUR 0
Total price for all items including VAT.
Total price for all items excluding VAT.
All products are shipped from our EU warehouse. Delivery to Germany is outside of the EU so 0% VAT is applicable. The local authorities may charge you VAT & import duties upon delivery.
Prices exclude shipping costs which are calculated at checkout.

Specs

Weight / Rim Front Wheel Rear Wheel Wheel Set Aero Profile Height Max. Rim Width Brake Track Width
HADRON² DISC Rear Wheel Rim Brake - Red/White Decal
N/A 1090g N/A N/A N/A 23mm
HADRON² DISC Rear Wheel Rim Brake - Blank
N/A 1090g N/A N/A N/A 23mm
HADRON² DISC Rear Wheel Disc Brake - Red/White Decal
N/A 1100g N/A N/A N/A N/A
HADRON² DISC Rear Wheel Disc Brake - Blank
N/A 1100g N/A N/A N/A N/A

Description

The DISC. Your weapon for those final few watts of aero performance and the all important seconds on the clock. But this is not just any disc rear wheel, it’s a technological game changer. Of course it sets the benchmark aerodynamically also in structural design, using an asymmetrical lenticular shape, hollow inside, with twin foam sandwich construction outer walls which deliver ultra light weight but also high lateral stiffness for optimum power transmission. Tubeless ready. Available in disc brake and rim brake versions.

Compatibility

Shimano, SRAM 10&11 speed cassettes (standard). XDR Driver & Campagnolo compatible with freehub kits available separately.

Hub

DT Swiss 180 DICUT, 36T Ratchet EXP.

Rim brake wheel hub/axle dimensions are: 5 x 130mm QR rear.

Disc Brake Interface: Disc Center Lock; 12/148mm Axle System

Spokes

N/A

Bearings

  • Ceramic Bearings
  • Made of extremely tough and wear - and corrosion-resistant ceramic material
  • Reduces rolling resistance to absolute minimum
  • Guarantees greater durability than conventional ball bearings

Additional Info

Shipping

  • Shipping costs are in addition to the pricing shown. Cost effective shipping is calculated based on your region at the checkout.
  • All products ship from our EU warehouse located in Poland and/or Germany.
  • For EU customers, all pricing shown includes local VAT. Courier delivery time is typically 3-5 days.
  • For international customers, including Switzerland and non-EU countries, all pricing shown is without VAT. Import duties and taxes (VAT) may be charged separately by your country’s authorities upon receiving your shipment. International delivery times vary depending on the shipping option chosen. Courier deliver is typically 3-15 days worldwide.
  • The Swiss Side HADRON² DISC Rear Wheel for Rim Brake is not for sale or use in the USA and/or Canada. Any orders will be cancelled.

Package Includes

For Rim Brake: Tubeless valve, valve spacer, valve cover patch, pump adapter, QR skewer, brake pads (SwissStop Black Prince Flash Pro), wheel bag.

For Disc Brake: Tubeless valve, valve spacer, pump adapter, spare valve cover, wheel bag.

Disc brake wheels DO NOT come with the “lock nut” / disc brake rotor lock ring– this is specific to the bike.

Tyre Size

For Rim and Disc Brake: We recommend using a 25mm tyre. If additional comfort is desired, a 28mm tyre can be used. We do not recommend tyres greater than 28mm width for rim brake and 30mm for disc brake.

Rider Weight / Safety Notice

The maximum total system weight (bike + rider) for the HADRON Ultimate and Classic rim and disc brake wheelsets are 110kg.

Tyre pressures of 120psi should not be exceeded.

User Manual

Download User Manual
User Manual DISC Rear Wheel RB

Wheel Spec Comparison

Profile Depth
i

HADRON² DISC Rear Wheel Rim Brake - Red/White Decal
10
HADRON² DISC Rear Wheel Rim Brake - Blank
10

Aero Drag
i

HADRON² DISC Rear Wheel Rim Brake - Red/White Decal
10
HADRON² DISC Rear Wheel Rim Brake - Blank
10

Aero Wind Stability
i

HADRON² DISC Rear Wheel Rim Brake - Red/White Decal
6
HADRON² DISC Rear Wheel Rim Brake - Blank
6

Weight
i

HADRON² DISC Rear Wheel Rim Brake - Red/White Decal
5
HADRON² DISC Rear Wheel Rim Brake - Blank
5

Stiffness
i

HADRON² DISC Rear Wheel Rim Brake - Red/White Decal
8
HADRON² DISC Rear Wheel Rim Brake - Blank
8

PERFORMANCE DELTAS FOR WHEEL COMBINATIONS

Wind Tunnel Data measured with HADRON² Ultimate wheels on 2018 model Canyon Speedmax CF SLX at 45km/h

Wheel Setup Front / Rear Drag (W) DIFFERENCE (W) STEERING MOMENT (Nm) DIFFERENCE (%)
800/DISC 56.10 -1.80 1.29 0%
800/800 57.90 0.00 1.29 0%
625/800 59.00 1.10 0.97 -25%
625/625 59.20 1.30 0.97 -25%
500/800 60.70 2.80 0.71 -45%
500/625 61.10 3.20 0.71 -45%
500/500 61.70 3.80 0.71 -45%

*Performance difference relative to the 'aero setup' - 800 / 800

Time Benefits

Speed Power Drag Reduction 40km 90km 180km
HADRON² DISC Rear Wheel Red/White Decal / FW 800
45km/h
35km/h 		350W
180W 		17.8W
8.4W 		1m 01s
1m 16s 		2m 17s
2m 50s 		4m 34s
5m 40s
HADRON² DISC Rear Wheel Blank / FW 800
45km/h
35km/h 		350W
180W 		17.8W
8.4W 		1m 01s
1m 16s 		2m 17s
2m 50s 		4m 34s
5m 40s

*Drag reduction given relative to standard road wheel set.
`

Wheel Mapping

Tyre of Riding Time Trial Road Racing Training Alps
HADRON² DISC Rear Wheel Rim Brake - Red/White Decal
HADRON² DISC Rear Wheel Rim Brake - Blank
