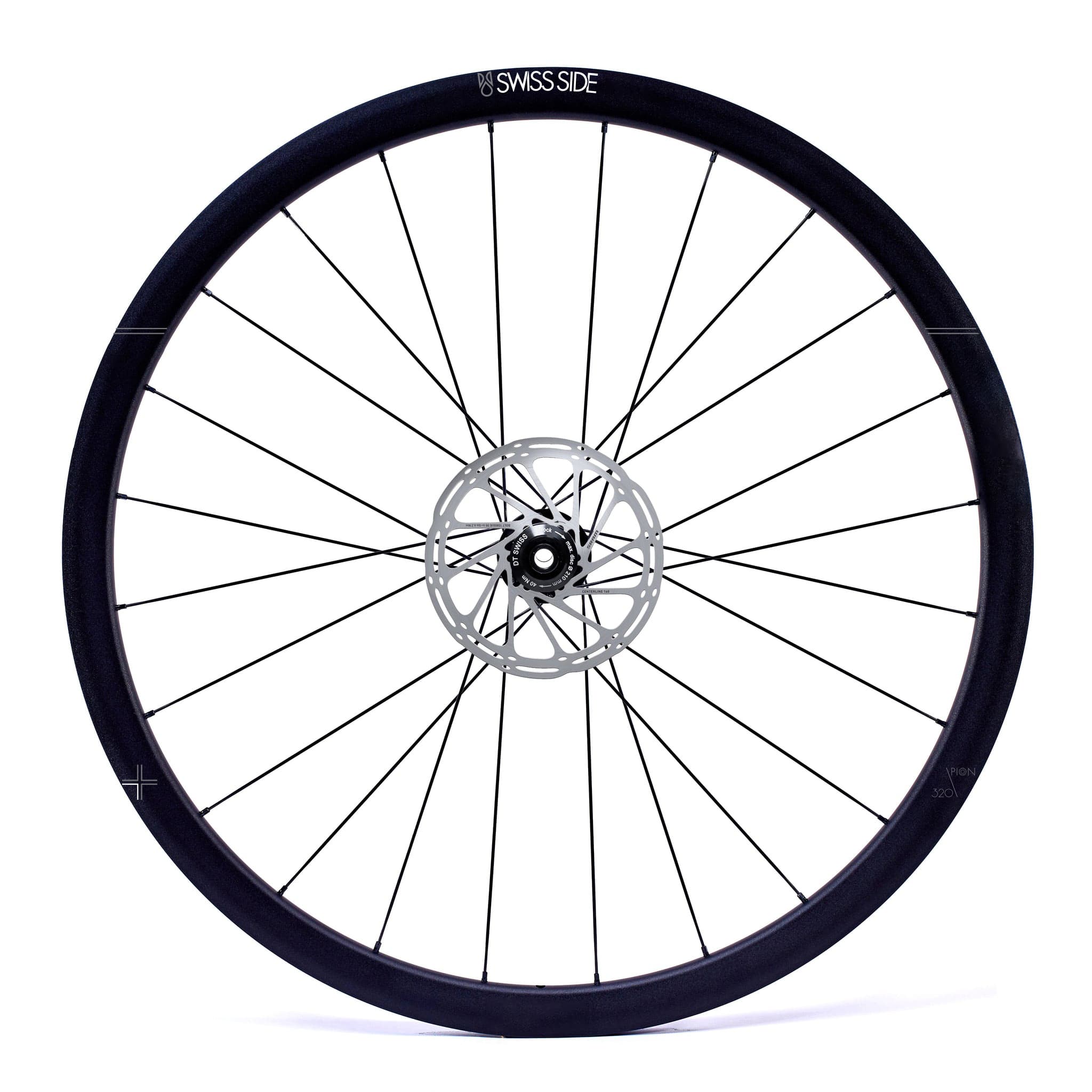

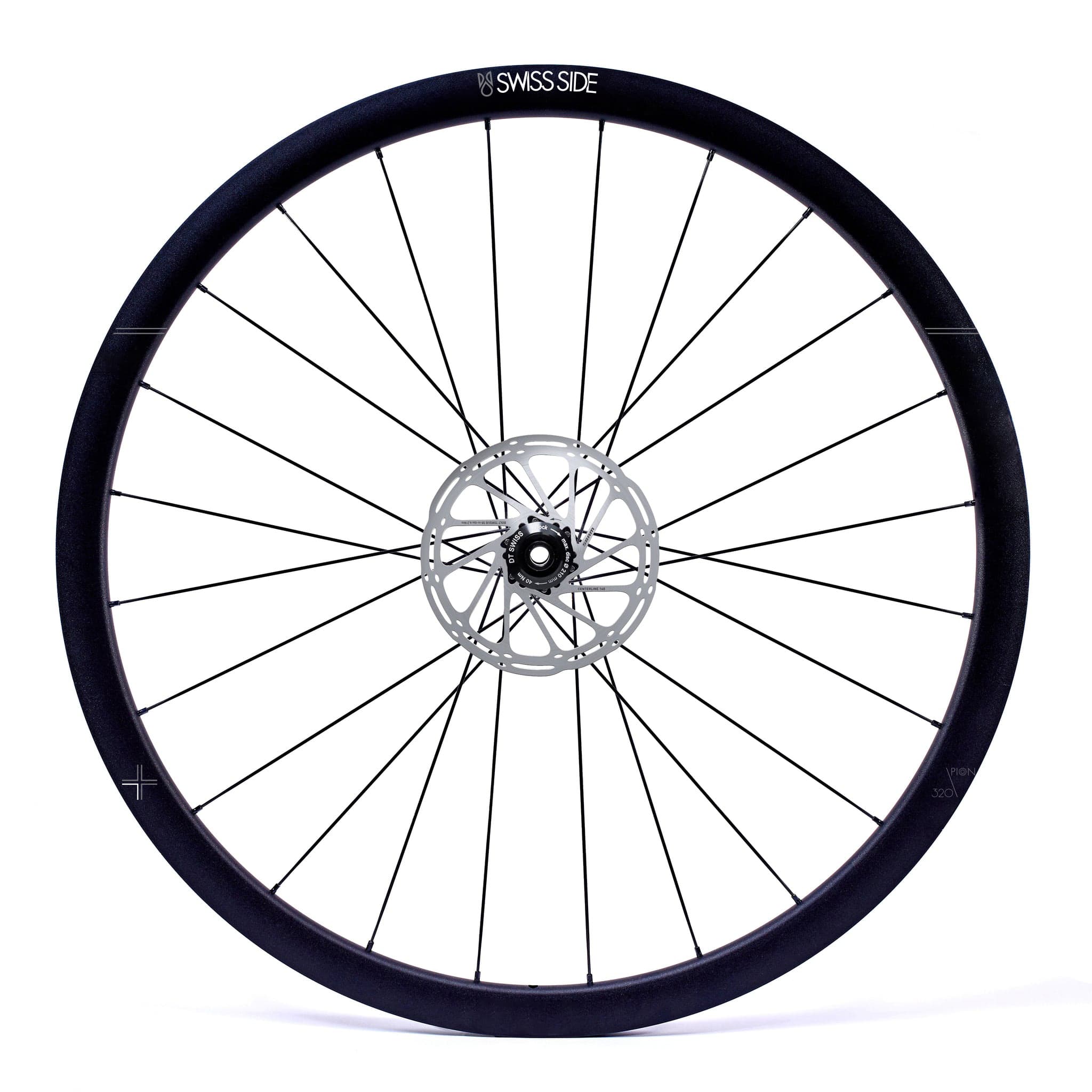

PION Disc Brake
The PION is a wheel that excels in any terrain, with a super stiff and lightweight deep section 32mm aluminium rim. The tubeless ready rim design makes this wheel compatible with the latest road bike & gravel tyres. Together with the durable DT Swiss 370 hubs and DT Swiss Aero Comp bladed spokes, the PION is a high performance all-rounder. Manufactured through DT Swiss, once again the highest possible Swiss quality and durability is assured.
All the products
Specs
Weight / Rim | Front Wheel | Rear Wheel | Wheel Set | Aero Profile Height | Max. Rim Width | Brake Track Width |
---|---|---|---|---|---|---|
|
812g | 971g | 1783g | 32mm | 21.5mm | 21.5mm |
|
831g | 978g | 1809g | 32mm | 21mm | N/A |
Description
Compatibility
Shimano 10,11,12 speed freehub as standard. Also SRAM 10,11 speed compatible. Free hub kits available for order separately: Campagnolo 10,11, 12 speed, and 12-speed XDR Driver
Hub
DT Swiss 370 Classic, custom for Swiss Side. Brake Interface: Disc Center Lock; Axle System as delivered: 12 x 100mm thru axle front; 12 x 142mm thru axle rear; Disc brake wheel hubs are also supplied with interchangeable end caps for the following axle configurations: 5mm x 100mm QR front axle; 5mm x 135mm QR rear axle; 12mm x 135mm rear thru-axle. For DISC Rear Wheel: DT Swiss 180 DICUT, 36T Ratchet EXP. Disc Brake Interface: Disc Center Lock; 12/142mm Axle System.
Spokes
Bearings
- High end stainless steel bearings
- Low friction thanks to single sided seals
- 2080 N load capacity per bearing
- Minimal bearing clearance
Additional Info
Shipping
Package Includes
Tubeless ready rim tape (pre-installed), Valve extension, Tubeless valve, QR skewers.
Disc brake wheels DO NOT come with the “lock nut” / disc brake rotor lock ring– this is specific to the bike.
Tyre Size
All tyres from 23mm to 30mm can be used on this rim.
Rider Weight / Safety Notice
The maximum total system weight (bike + rider) for the PION wheelset is 130kg. Tyre pressures of 120psi (and tyre manufacturer's maximum pressure) should not be exceeded.
User Manual
Wheel Mapping
Tyre of Riding | Time Trial | Road Racing | Training | Alps |
---|---|---|---|---|
|
Product Reviews

PION rim brake - RennRad Review (June 2020)
RennRad tested our PION rim brake wheels as part of their "Fast All-round Wheels" Test (Magazine issue 6). Available in German only. Download magazine.
Verdict:
- Robust and sturdy wheels
- Great lateral stiffness
- Excellent quality for a fair price
July 06, 2020
RennRad tested our PION rim brake wheels as part of their "Fast All-round Wheels" Test (Magazine issue 6). Available in German only. Download magazine.
Verdict:
- Robust and sturdy wheels
- Great lateral stiffness
- Excellent quality for a fair price
