Front Wheel Price EUR 137.40
Save 15%
Reduced from EUR 161.65

PION Rim Brake

The PION is a wheel that excels in any terrain, with a super stiff and lightweight deep section 32mm aluminium rim. The tubeless ready rim design makes this wheel compatible with the latest road bike & gravel tyres. Together with the durable DT Swiss 370 hubs and DT Swiss Aero Comp bladed spokes, the PION is a high performance all-rounder. Manufactured through DT Swiss, once again the highest possible Swiss quality and durability is assured.

Configure / Buy
View Specs
PION Rear Wheel
PION Front Wheel

Brakes / Compability
Wheel Selection
Add to Cart

All the products

Brakes
Compatibility
Front Wheel
Rear Wheel
ADD CONTINENTAL GP5000 TYRES & TUBES
ADD CONTINENTAL GP5000 TYRES & TUBES
Front Wheel
PION Front Wheel Rim Brake
EUR 137.40
Save 15%
Reduced from EUR 161.65
Product available.
Rear Wheel
PION Rear Wheel Rim Brake
EUR 189.74
Save 15%
Reduced from EUR 223.23
Product available.
EUR 0
Total price for all items including VAT.
Total price for all items excluding VAT.
All products are shipped from our EU warehouse. Delivery to Germany is outside of the EU so 0% VAT is applicable. The local authorities may charge you VAT & import duties upon delivery.
Prices exclude shipping costs which are calculated at checkout.

Specs

Weight / Rim Front Wheel Rear Wheel Wheel Set Aero Profile Height Max. Rim Width Brake Track Width
PION Rim Brake
812g 971g 1783g 32mm 21.5mm 21.5mm
PION Disc Brake
831g 978g 1809g 32mm 21mm N/Amm

Description

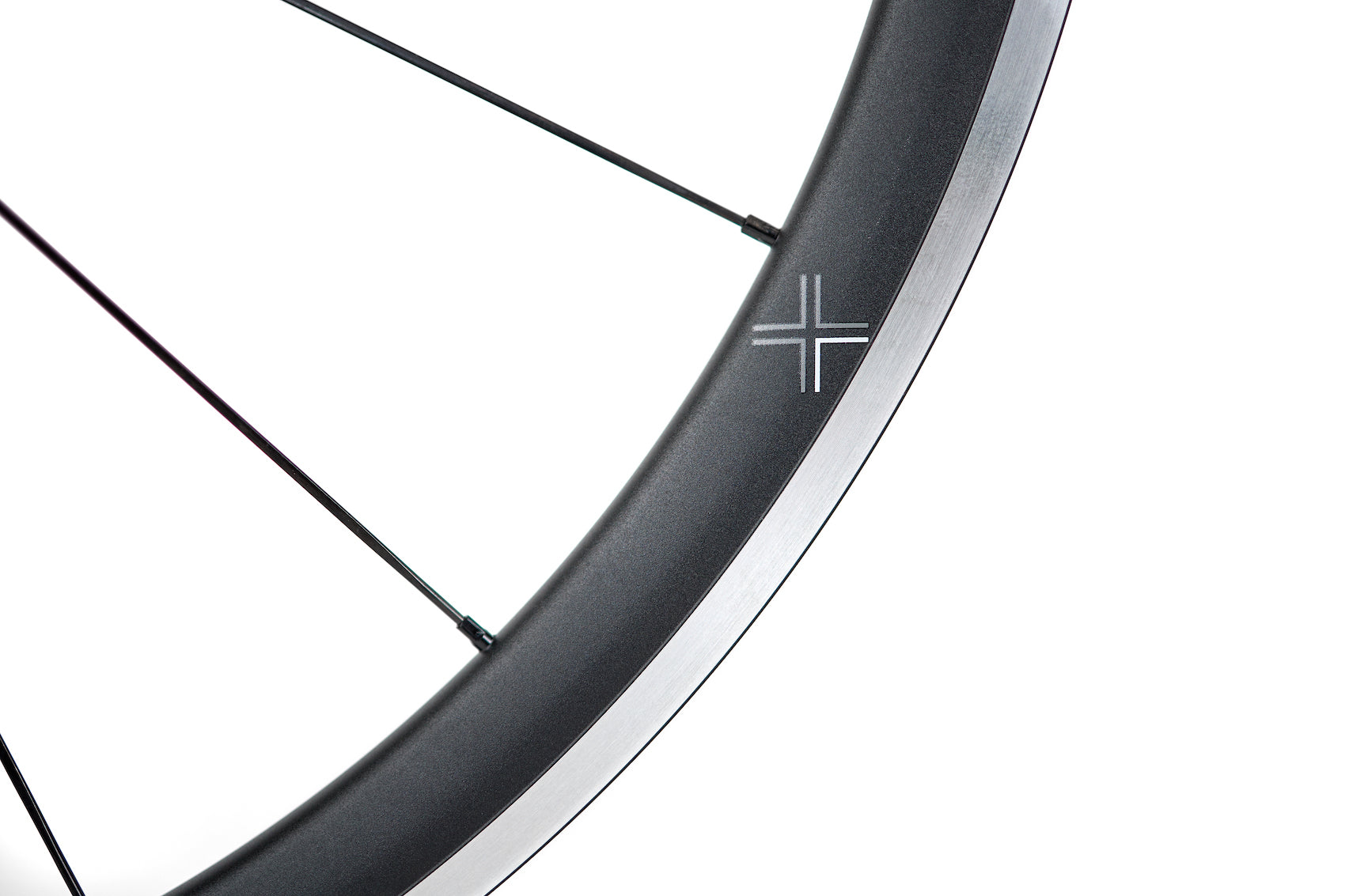

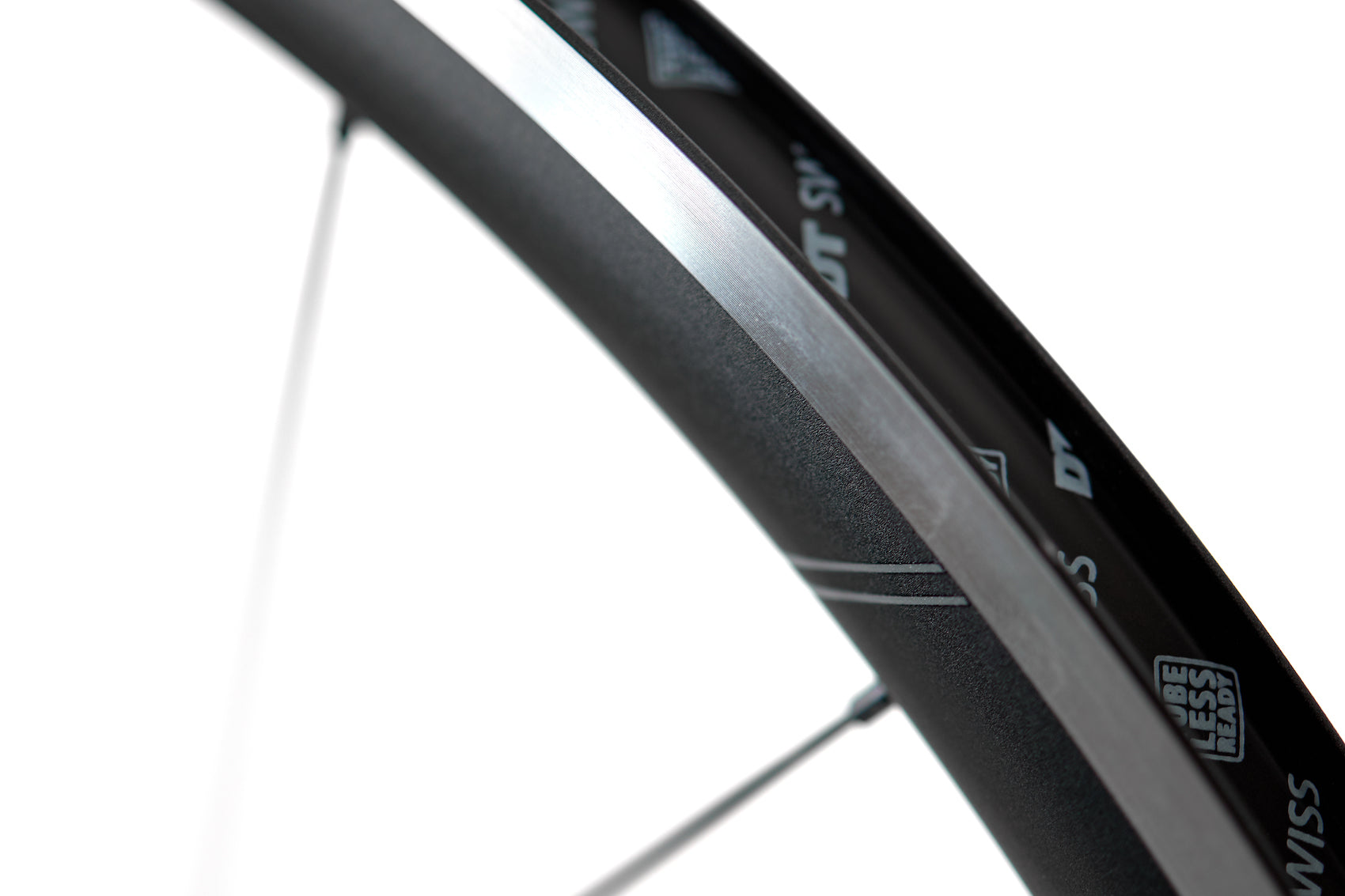

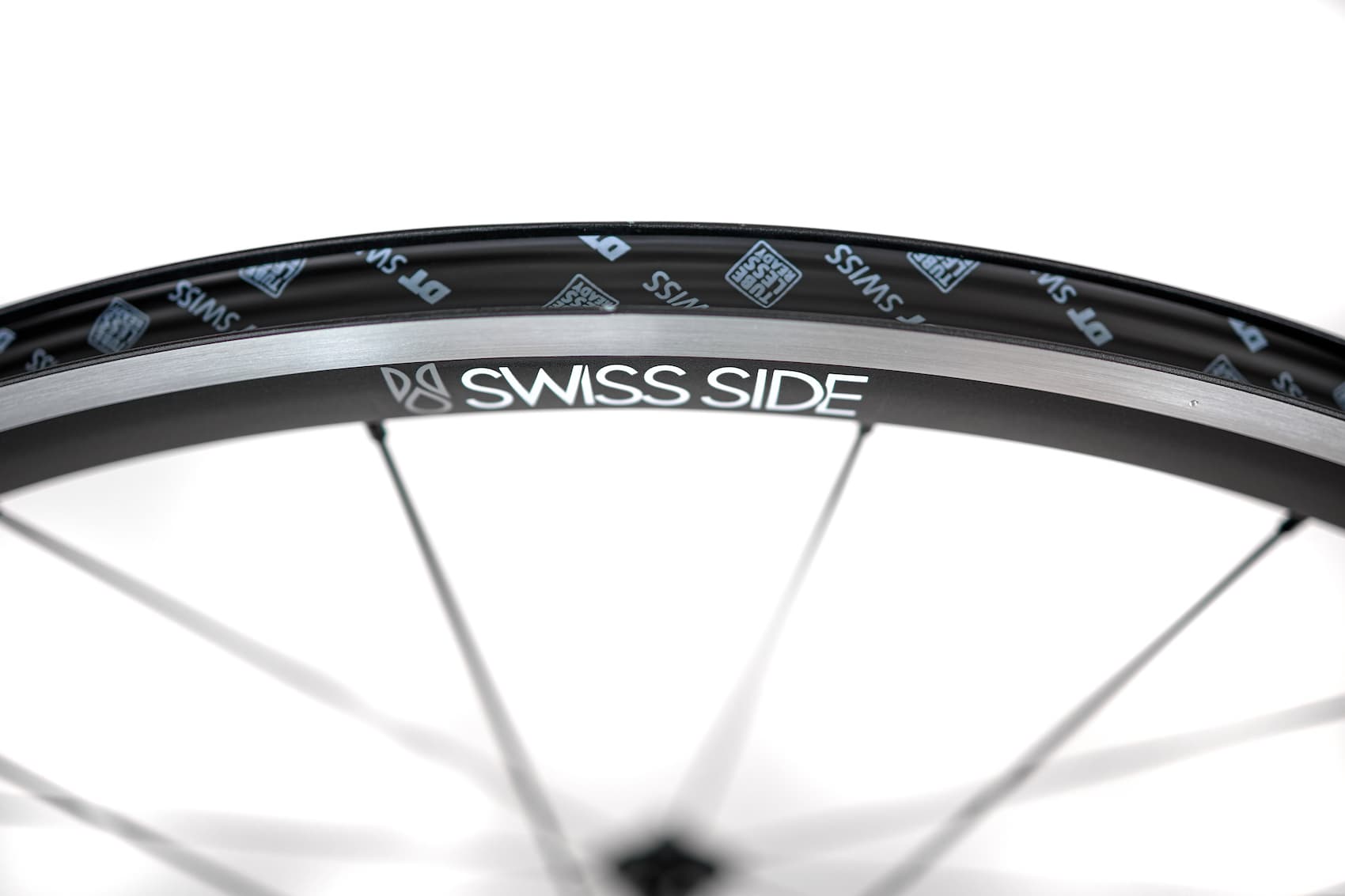

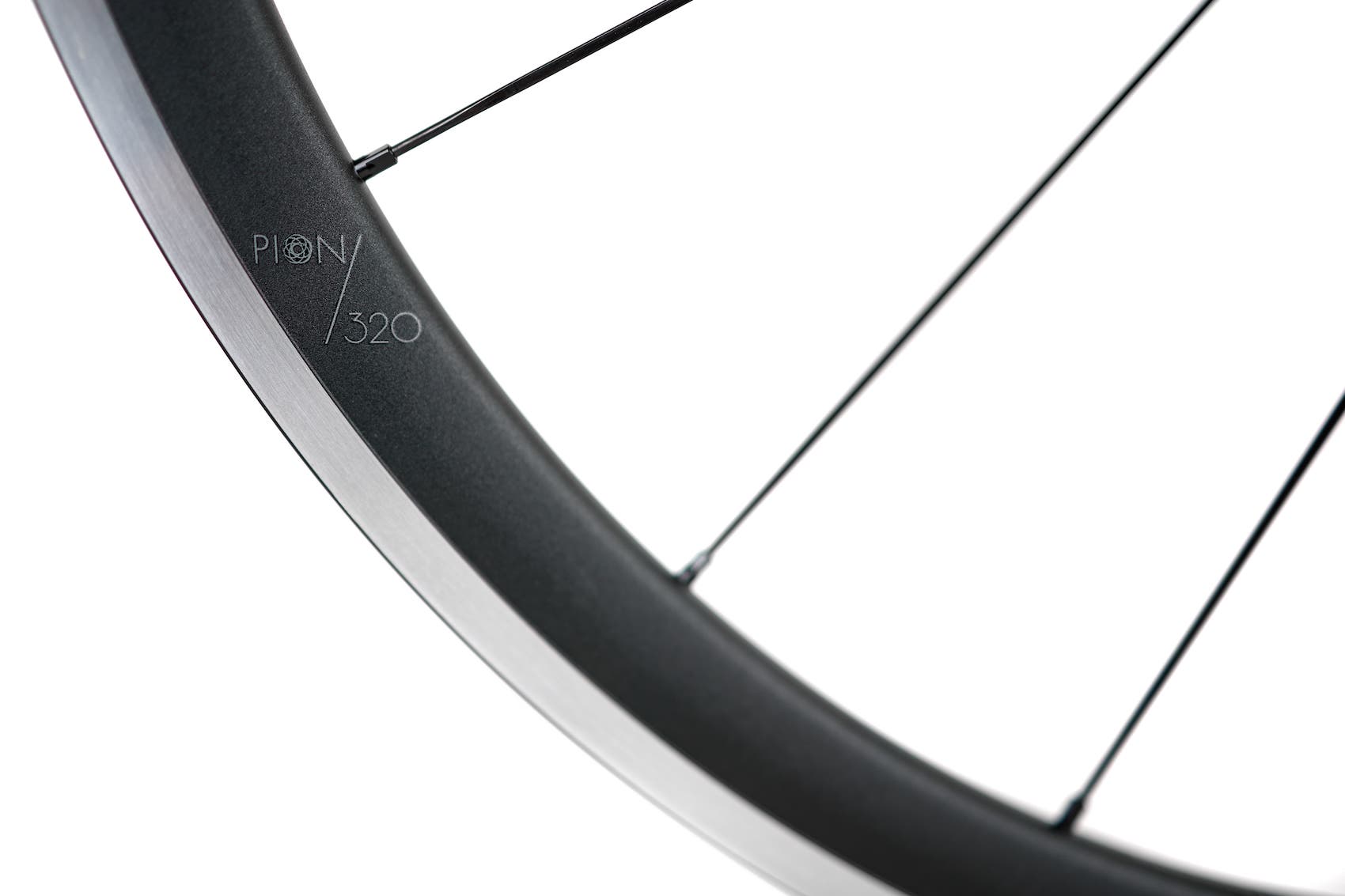

The PION is a wheel that excels in any terrain, with a super stiff and lightweight 32mm deep aluminium rim. The wide 18mm internal width generates the stiffness whilst maintaining light weight and allowing the fitting of wider tyres from 23mm up to 30mm wide. The tubeless ready rim design, pre-fitted with tubeless rim tape, makes this wheel compatible with the latest road bike & gravel tyres. The PION wheels share the same high precision and durable DT Swiss 370 hubs from the HADRON Classic wheel line. Together with DT Swiss Aero Comp bladed spokes and lightweight aluminium nipples, the PION is a high performance allrounder which can accommodate almost all riders with an allowable system weight of 130kg. Manufactured through DT Swiss, once again the highest possible Swiss quality and durability is assured. Set weight = 1783g Rim Brake / 1809g Disc Brake.

Compatibility

Shimano, SRAM 10&11 speed cassettes (standard). XDR Driver & Campagnolo compatible with freehub kits available separately.

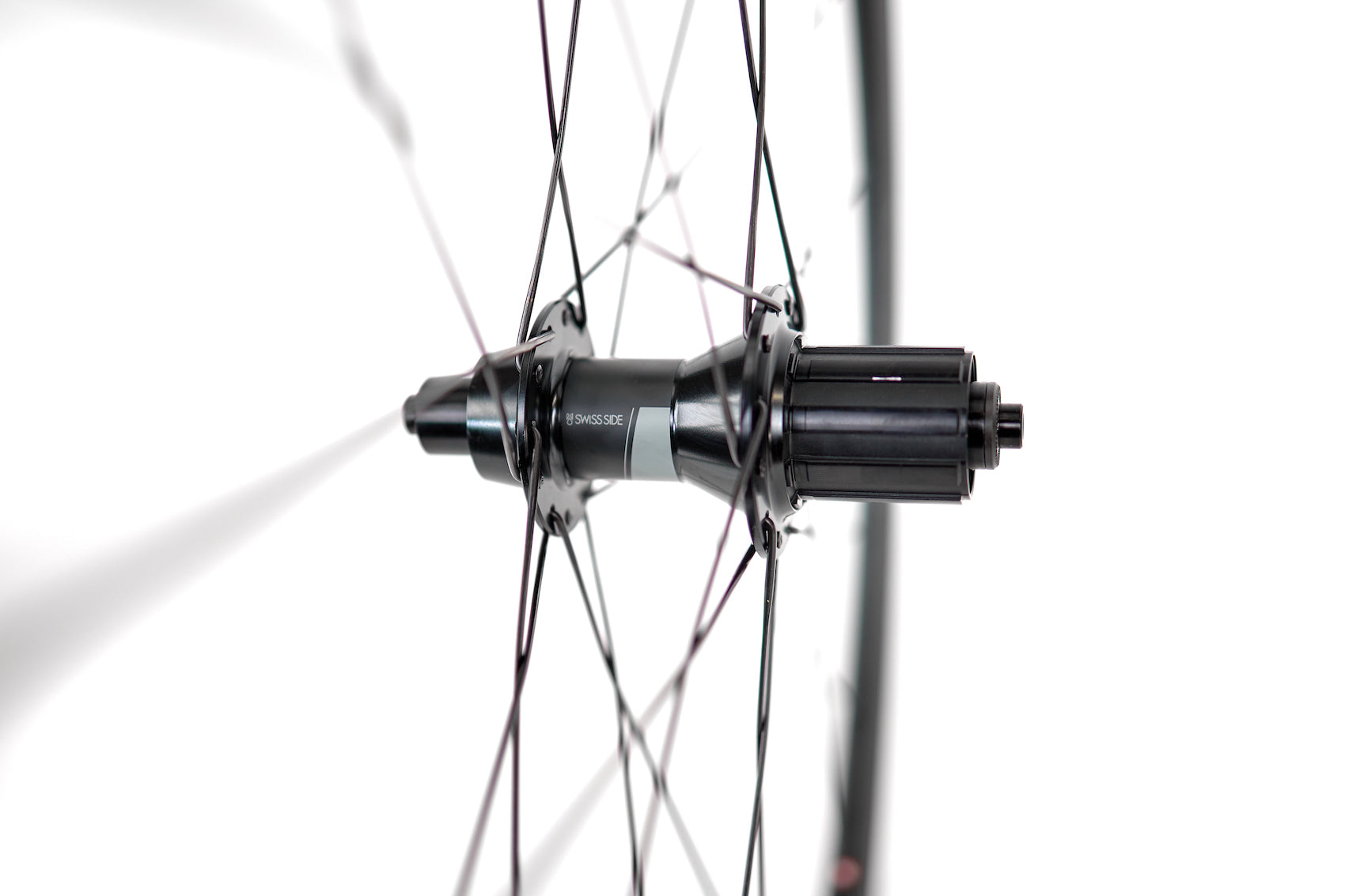

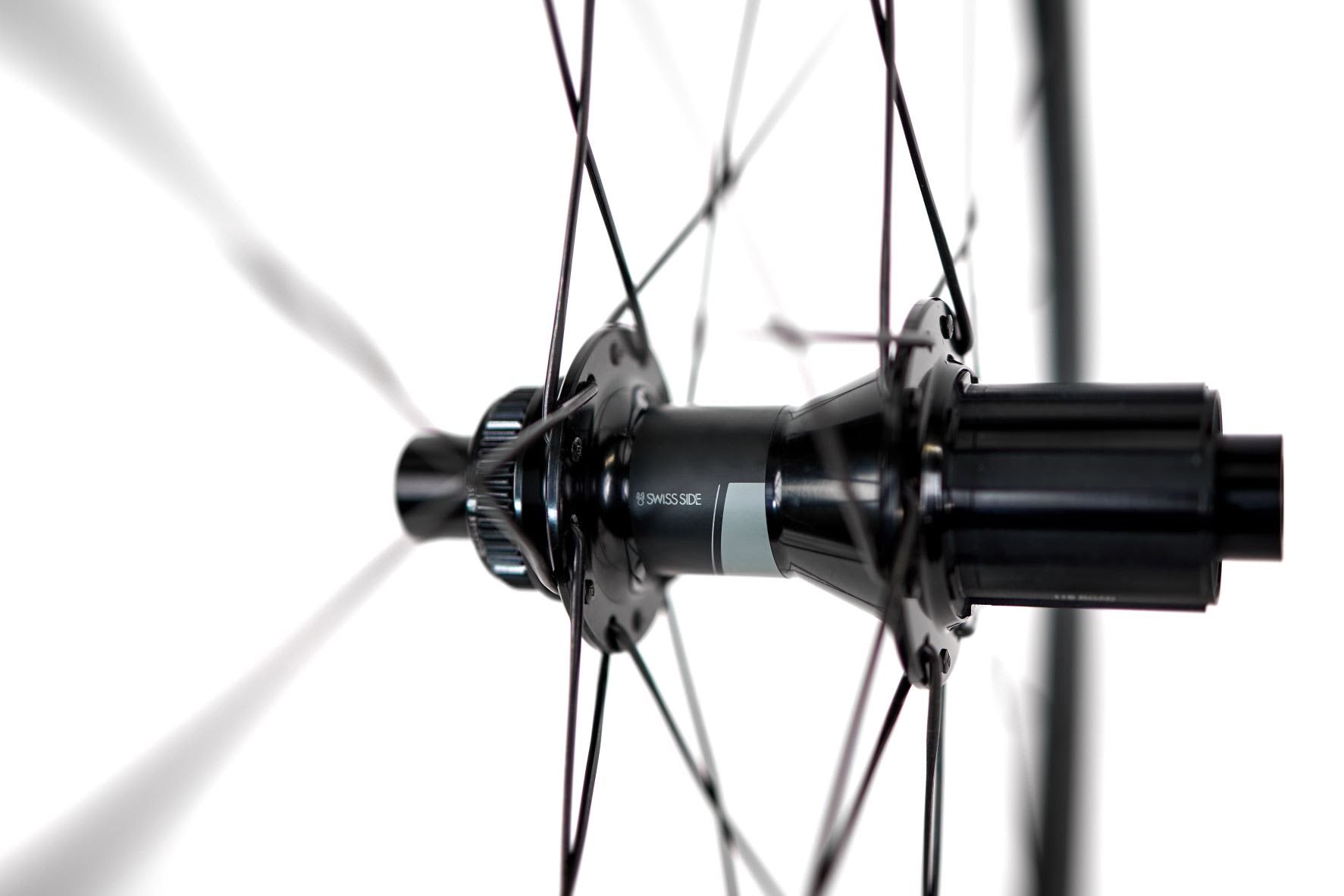

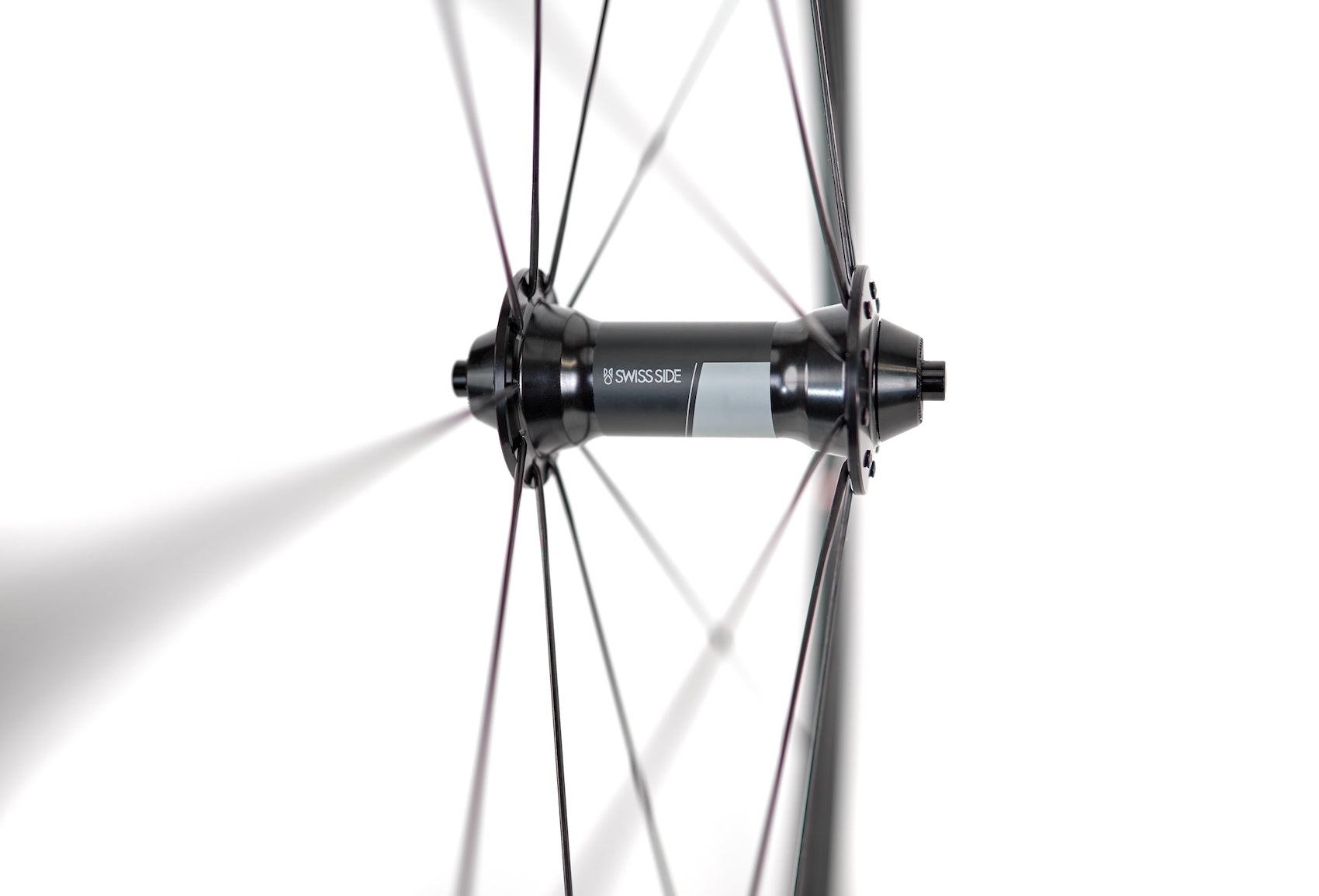

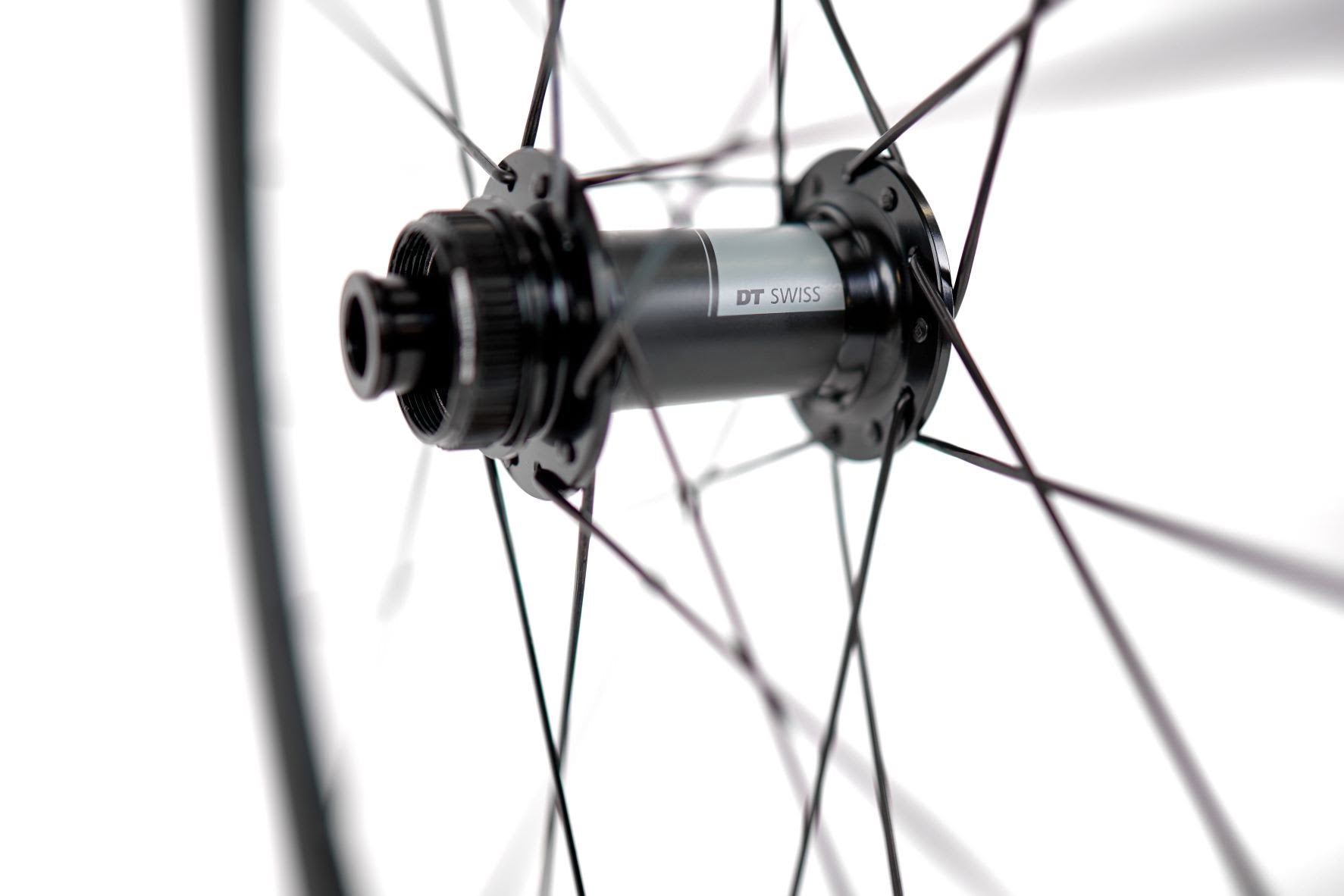

Hub

DT Swiss 370, custom for Swiss Side. Rim brake wheel hub/axle dimensions are: 5mm x 100mm front / 5mm x 130mm rear. Disc brake wheel hubs/axle dimensions are: 5mm x 100mm, 12 x 100mm front / 5mm x 135mm, 12 x 142mm rear.

Spokes

DT Swiss Aero Comp J-bend spokes with DT Swiss ProLock standard aluminium nipples. Front Rim Brake (radial 1:1): 20 spokes. Rear Rim Brake (radial / 3-cross 2:1): 24 spokes. Front Disc Brake (2-cross 1:1): 24 spokes. Rear Disc Brake (2-cross 1:1): 24 spokes.

Bearings

  • High end stainless steel bearings
  • Low friction thanks to single sided seals
  • 2080 N load capacity per bearing
  • Minimal bearing clearance

Additional Info

Shipping

  • Shipping costs are in addition to the pricing shown. Cost effective shipping is calculated based on your region at the checkout.
  • All products ship from our EU warehouse located in Poland.
  • For EU customers, all pricing shown includes VAT. Courier delivery time is typically 2-3 days.
  • For international customers, including Switzerland and non-EU countries, all pricing shown is without VAT. Import duties and taxes (VAT) may be charged separately by your country’s authorities upon receiving your shipment. International delivery times vary depending on the shipping option chosen. Courier deliver is typically 3-15 days worldwide.

Package Includes

Tubeless ready rim tape (pre-installed), Valve extension, Tubeless valve, QR skewers.

Tyre Size

All tyres from 23mm to 30mm can be used on this rim.

Rider Weight / Safety Notice

The maximum total system weight (bike + rider) for the PION wheelset is 130kg. Tyre pressures of 120psi (and tyre manufacturer's maximum pressure) should not be exceeded.

User Manual

Download User Manual

Wheel Spec Comparison

Profile Depth
i

PION

Aero Drag
i

PION

Aero Wind Stability
i

PION

Weight
i

PION

Stiffness
i

PION

Time Benefits

Speed Power Drag Reduction 40km 90km 180km
PION
km/h
km/h 		W
W 		W
W 		0m 00s
0m 00s 		0m 00s
0m 00s 		0m 00s
0m 00s

*Drag reduction given relative to standard road wheel set.
`

Wheel Mapping

Tyre of Riding Time Trial Road Racing Training Alps
PION

Product Reviews

PION rim brake - RennRad Review (June 2020)

RennRad tested our PION rim brake wheels as part of their "Fast All-round Wheels" Test (Magazine issue 6). Available in German only. Download magazine.

Verdict:

  • Robust and sturdy wheels
  • Great lateral stiffness
  • Excellent quality for a fair price
July 06, 2020

PION - Bicycles Network Australia Review (Nov. 2019)

Christopher Jones from Bicycles Network Australia tested our PION wheel set and wrote a review. Read Review Here.

Summary:

+ Less drag than traditional aluminium rim
+ Accommodates wider tyres
+ Can be used for Cyclocross and gravel
+ Higher rider weight limit - up to 130kgs
+ High manufacturing quality and assurance

November 20, 2019
