Front Wheel Price $165.00 USD
Save 15%
Reduced from $194.00 USD

PION Rim Brake

The PION is a wheel that excels in any terrain, with a super stiff and lightweight deep section 32mm aluminium rim. The tubeless ready rim design makes this wheel compatible with the latest road bike & gravel tyres. Together with the durable DT Swiss 370 hubs and DT Swiss Aero Comp bladed spokes, the PION is a high performance all-rounder. Manufactured through DT Swiss, once again the highest possible Swiss quality and durability is assured.

Configure / Buy
View Specs

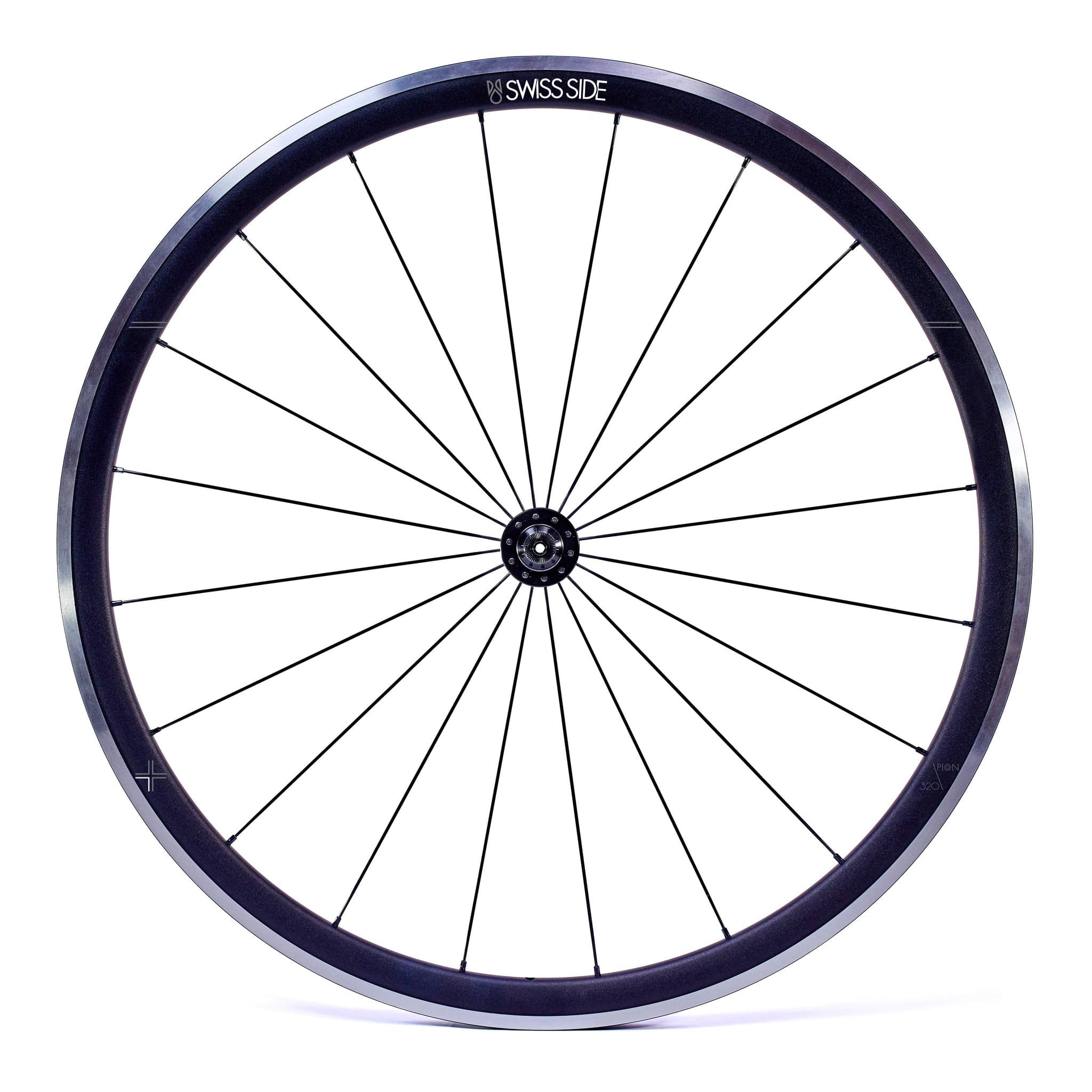

PION Front Wheel

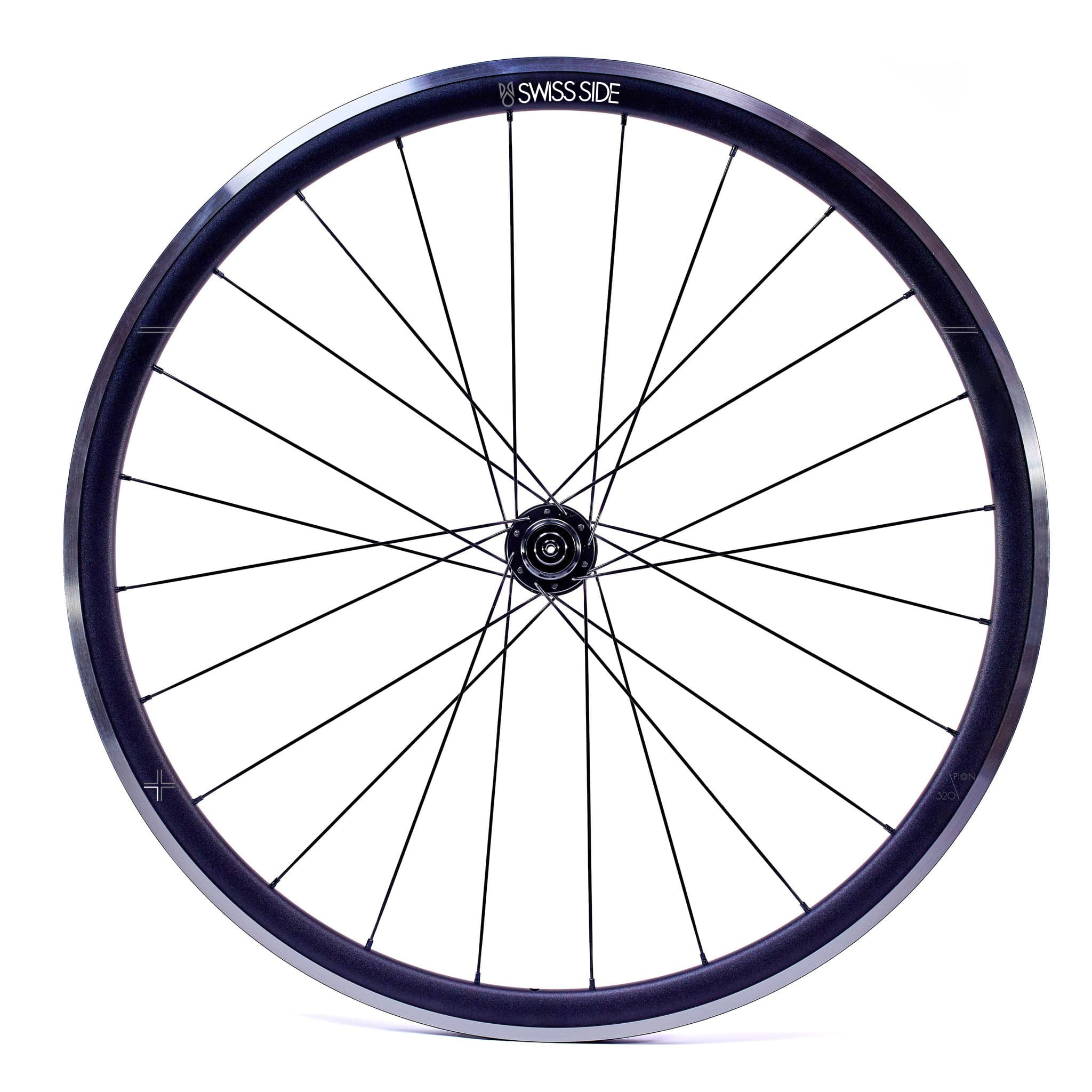

PION Rear Wheel

Brakes / Compability
Wheel Selection
Add to Cart

All the products

Brakes
OUT OF STOCK
OUT OF STOCK
Compatibility
Front Wheel
OUT OF STOCK
OUT OF STOCK
Rear Wheel
OUT OF STOCK
OUT OF STOCK
ADD CONTINENTAL GP5000 TYRES & TUBES
ADD CONTINENTAL GP5000 TYRES & TUBES
Front Wheel
PION Front Wheel Rim Brake
$165.00 USD
Save 15%
Reduced from $194.00 USD
Product available.
Rear Wheel
PION Rear Wheel Rim Brake
$228.00 USD
Save 15%
Reduced from $268.00 USD
Product available.
EUR 0
Total price for all items including VAT.
Total price for all items excluding VAT.
All products are shipped from our EU warehouse. Delivery to Germany is outside of the EU so 0% VAT is applicable. The local authorities may charge you VAT & import duties upon delivery.
Prices exclude shipping costs which are calculated at checkout.

Specs

Weight / Rim Front Wheel Rear Wheel Wheel Set Aero Profile Height Max. Rim Width Brake Track Width
PION Rim Brake
812g 971g 1783g 32mm 21.5mm 21.5mm

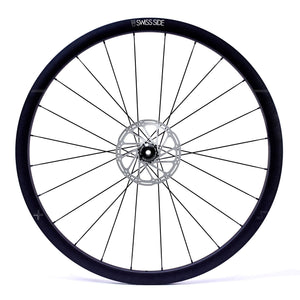

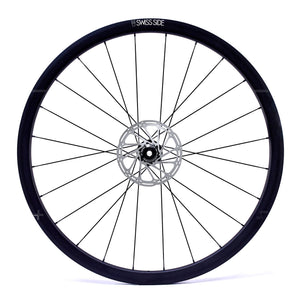

PION Disc Brake
831g 978g 1809g 32mm 21mm N/A

Description

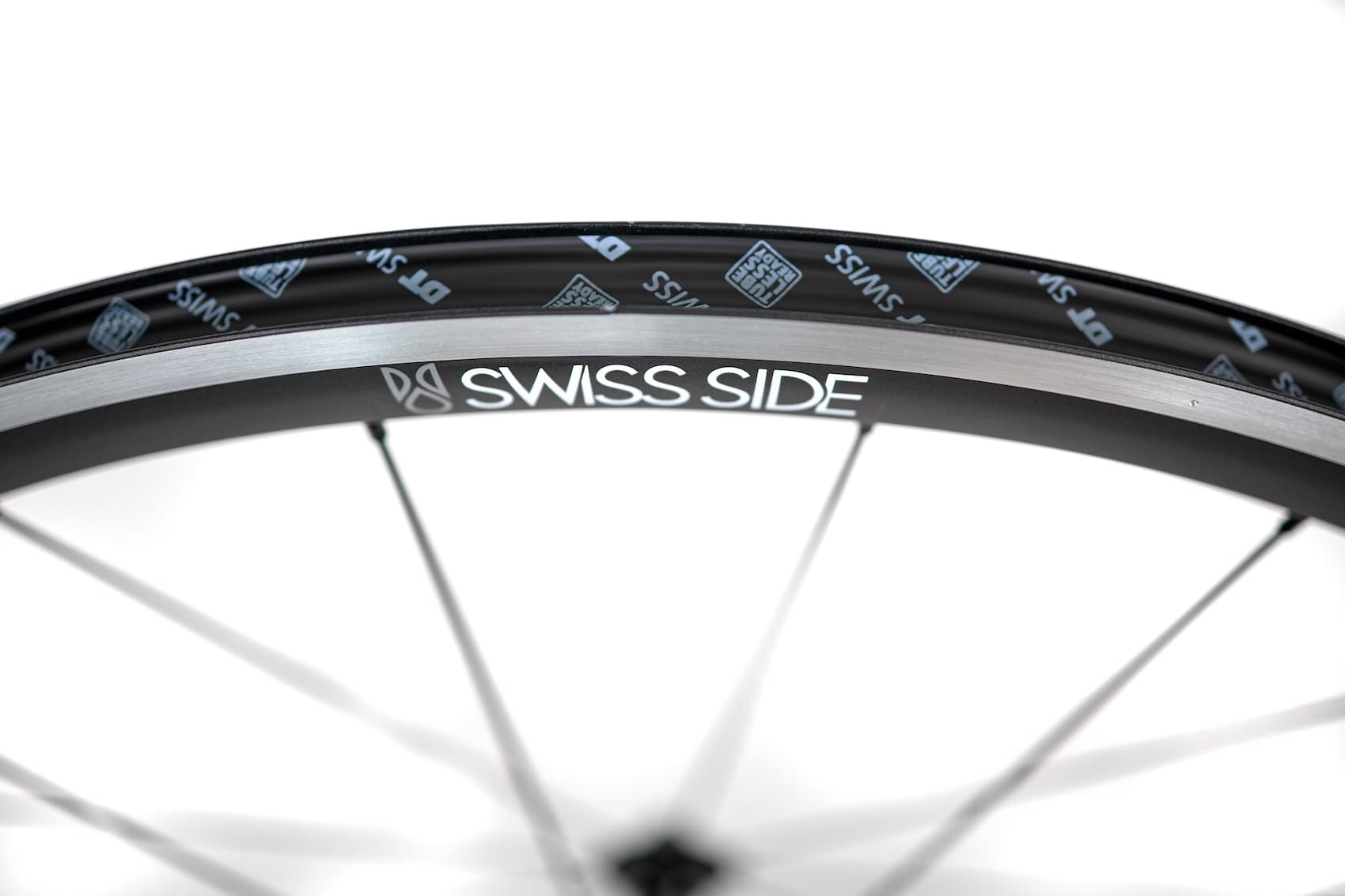

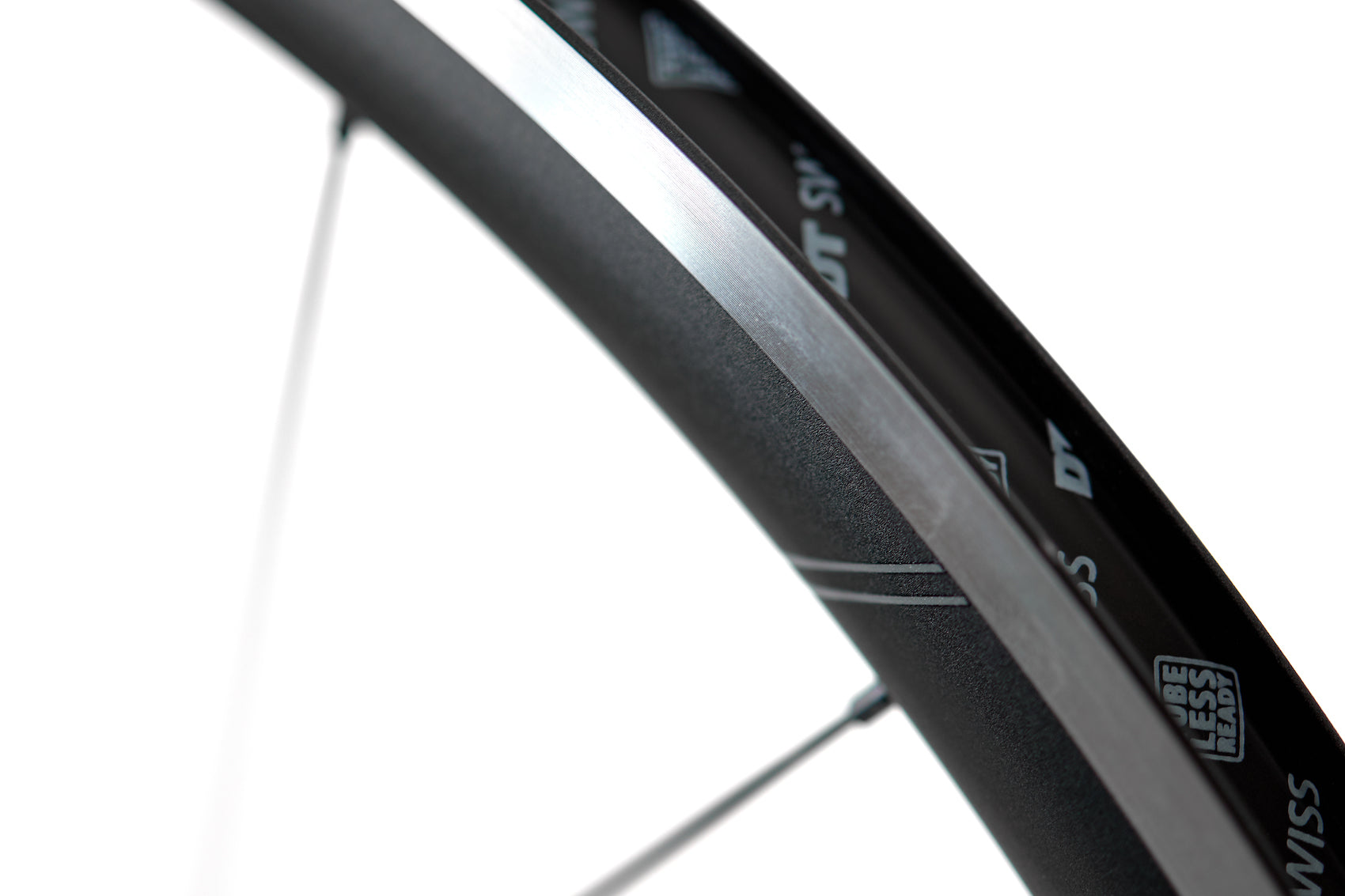

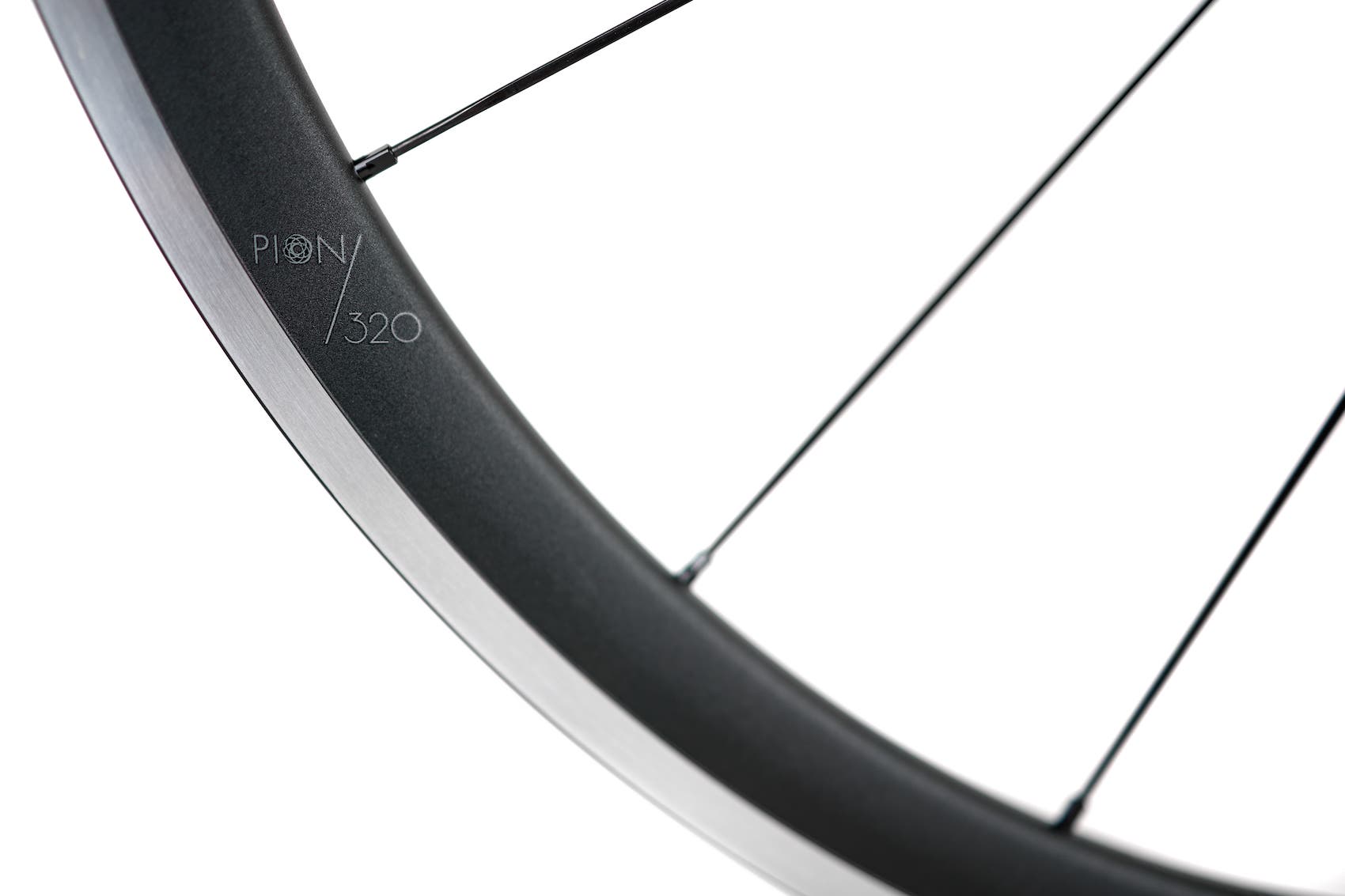

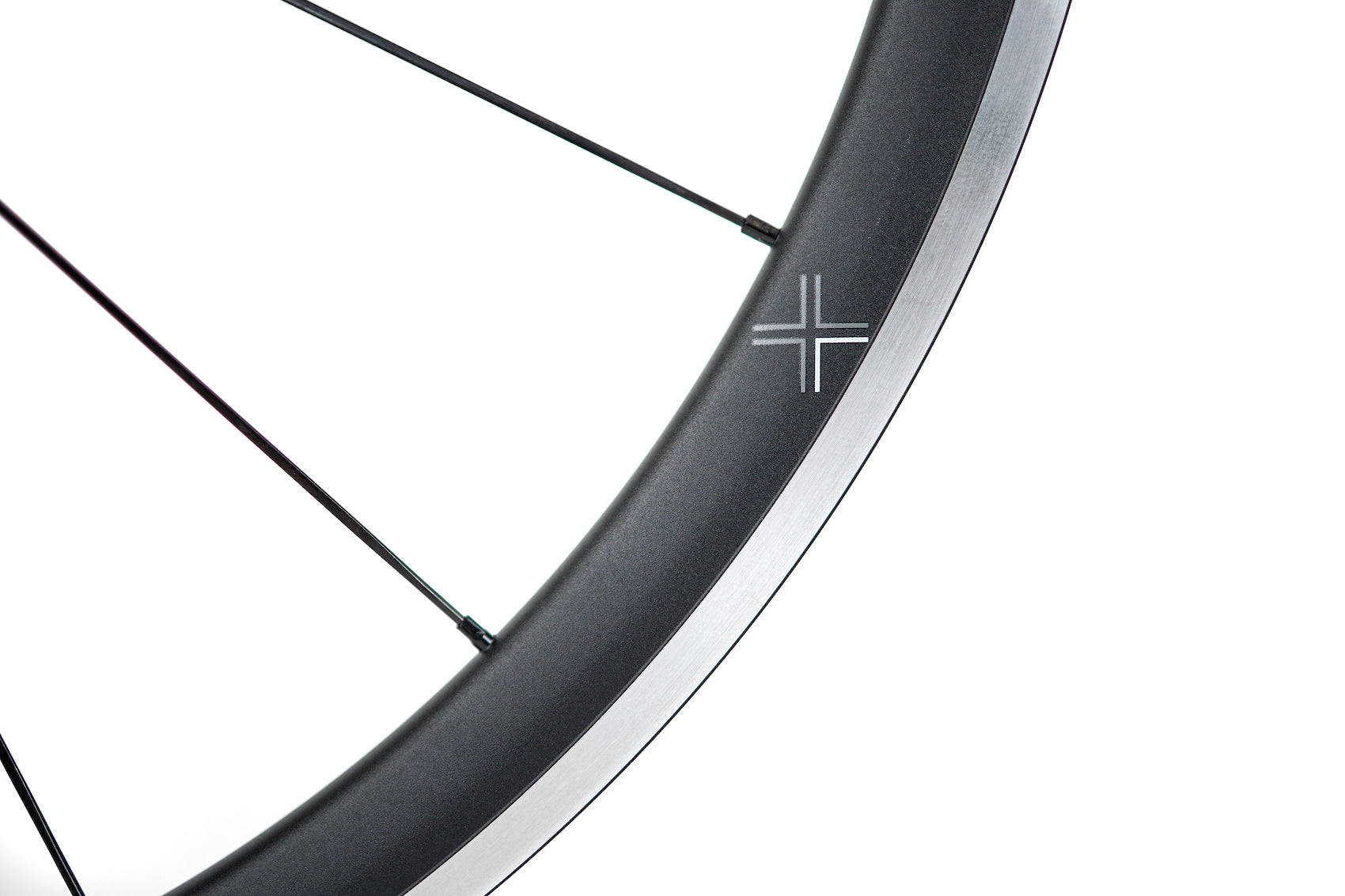

The PION is a wheel that excels in any terrain, with a super stiff and lightweight 32mm deep aluminium rim. The wide 18mm internal width generates the stiffness whilst maintaining light weight and allowing the fitting of wider tyres from 23mm up to 30mm wide. The tubeless ready rim design, pre-fitted with tubeless rim tape, makes this wheel compatible with the latest road bike & gravel tyres. The PION wheels share the same high precision and durable DT Swiss 370 hubs from the HADRON Classic wheel line. Together with DT Swiss Aero Comp bladed spokes and lightweight aluminium nipples, the PION is a high performance allrounder which can accommodate almost all riders with an allowable system weight of 130kg. Manufactured through DT Swiss, once again the highest possible Swiss quality and durability is assured. Set weight = 1783g Rim Brake / 1809g Disc Brake.

Compatibility

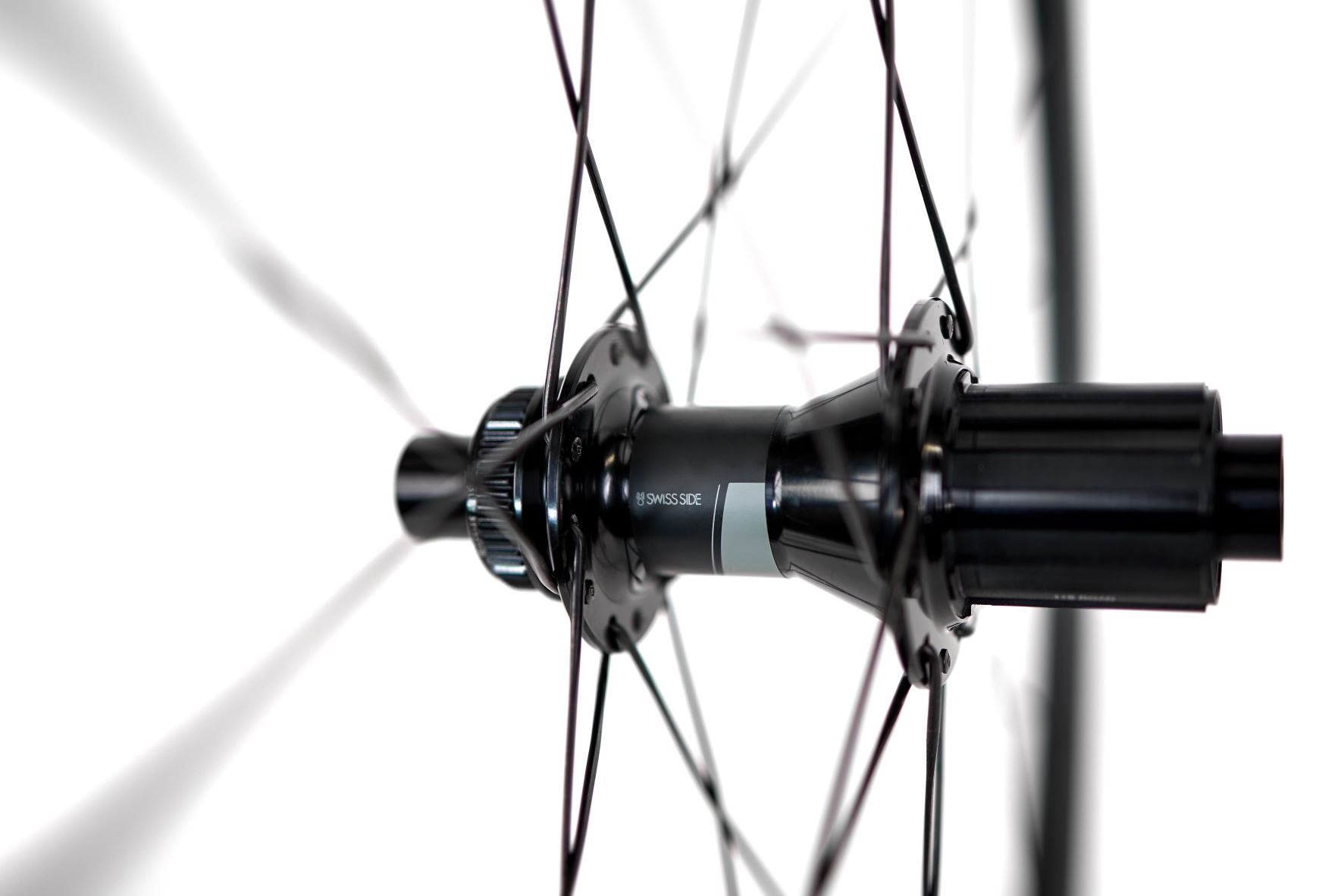

Shimano 10,11,12 speed freehub as standard. Also SRAM 10,11 speed compatible.  Free hub kits available for order separately: Campagnolo 10,11, 12 speed, and 12-speed XDR Driver

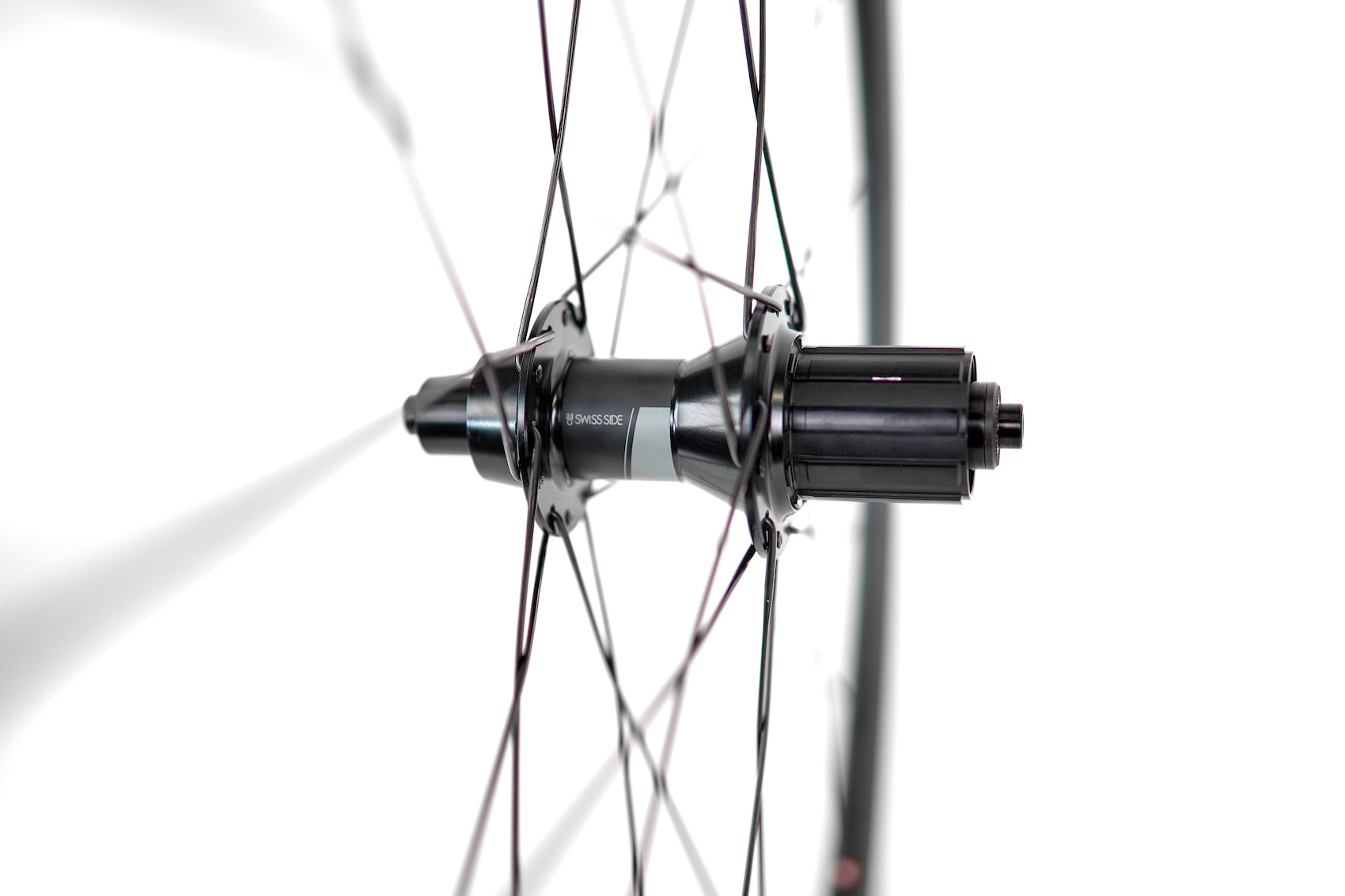

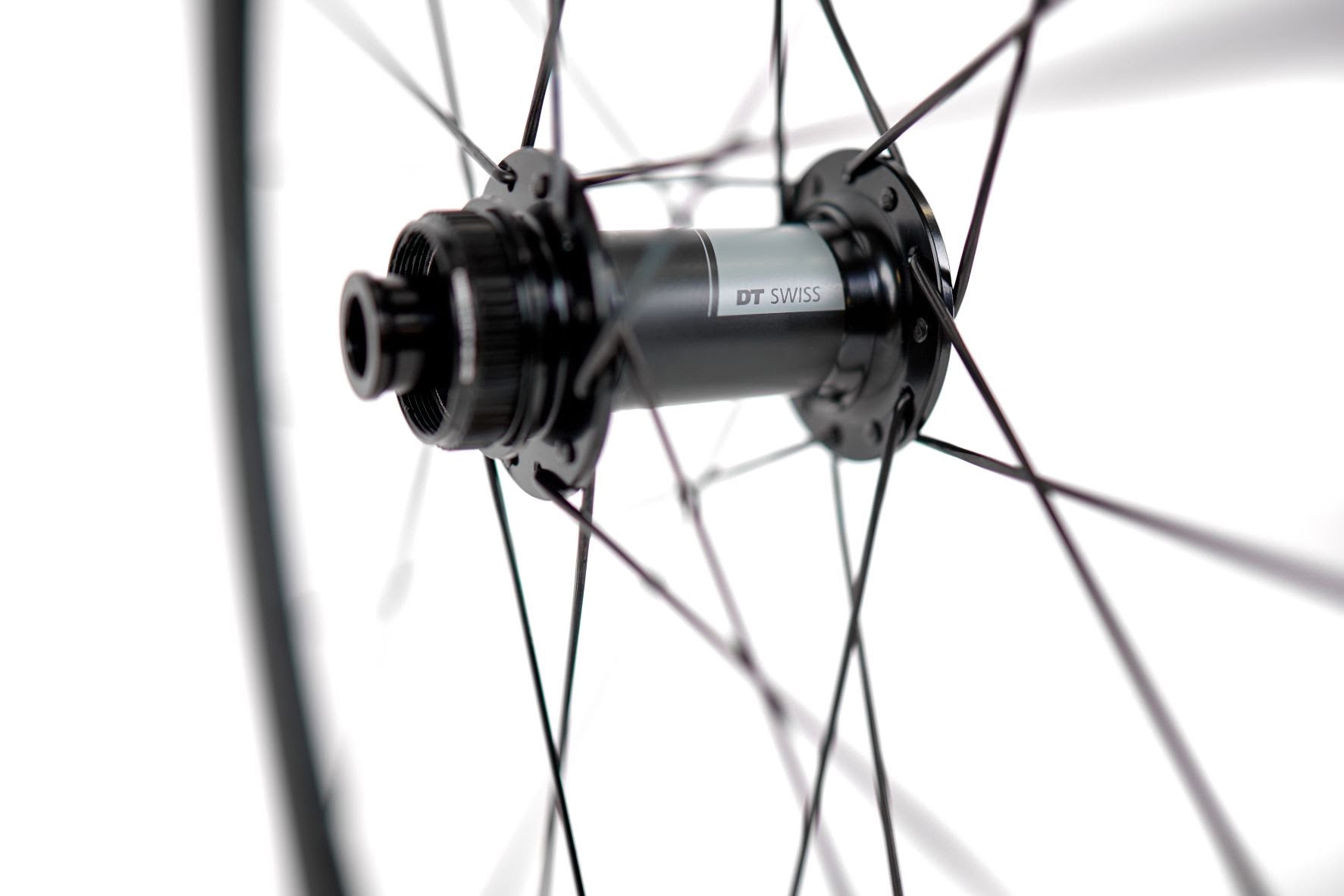

Hub

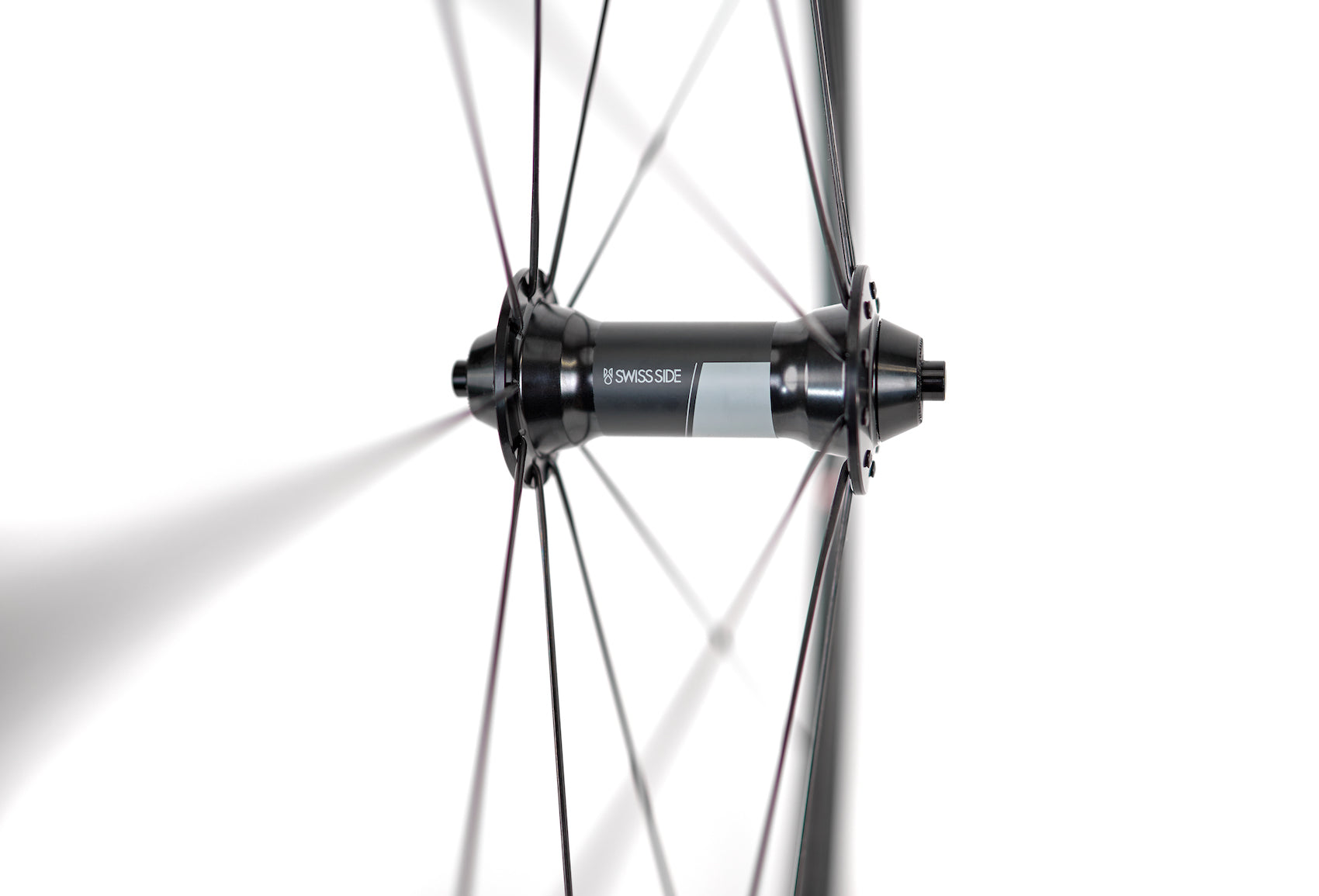

DT Swiss 370 Classic, custom for Swiss Side. Rim brake wheel hub/axle dimensions are: 5mm x 100mm QR front / 5mm x 130mm QR rear.

Spokes

DT Swiss Aero Comp J-bend spokes with DT Swiss ProLock standard aluminium nipples. Front Rim Brake (radial 1:1): 20 spokes. Rear Rim Brake (radial / 2-cross 1:1): 24 spokes. Front Disc Brake (2-cross 1:1): 24 spokes. Rear Disc Brake (2-cross 1:1): 24 spokes.

Bearings

  • High end stainless steel bearings
  • Low friction thanks to single sided seals
  • 2080 N load capacity per bearing
  • Minimal bearing clearance

Additional Info

Shipping

  • Shipping costs are in addition to the pricing shown. Cost effective shipping is calculated based on your region at the checkout.
  • All products ship from our EU warehouse located in Poland and/or Germany.
  • For EU customers, all pricing shown includes local VAT. Courier delivery time is typically 3-5 days.
  • For international customers, including Switzerland and non-EU countries, all pricing shown is without VAT. Import duties and taxes (VAT) may be charged separately by your country’s authorities upon receiving your shipment. International delivery times vary depending on the shipping option chosen. Courier deliver is typically 3-15 days worldwide.
  • The Swiss Side HADRON² DISC Rear Wheel for Rim Brake is not for sale or use in the USA and/or Canada. Any orders will be cancelled.

Package Includes

Tubeless ready rim tape (pre-installed), Valve extension, Tubeless valve, QR skewers.

Tyre Size

All tyres from 23mm to 30mm can be used on this rim.

Rider Weight / Safety Notice

The maximum total system weight (bike + rider) for the PION wheelset is 130kg. Tyre pressures of 120psi (and tyre manufacturer's maximum pressure) should not be exceeded.

User Manual

Download User Manual
`

Wheel Mapping

Tyre of Riding Time Trial Road Racing Training Alps
PION

Product Reviews

PION rim brake - RennRad Review (June 2020)

RennRad tested our PION rim brake wheels as part of their "Fast All-round Wheels" Test (Magazine issue 6). Available in German only. Download magazine.

Verdict:

  • Robust and sturdy wheels
  • Great lateral stiffness
  • Excellent quality for a fair price
