Rear Wheel Price $1,014.00 USD

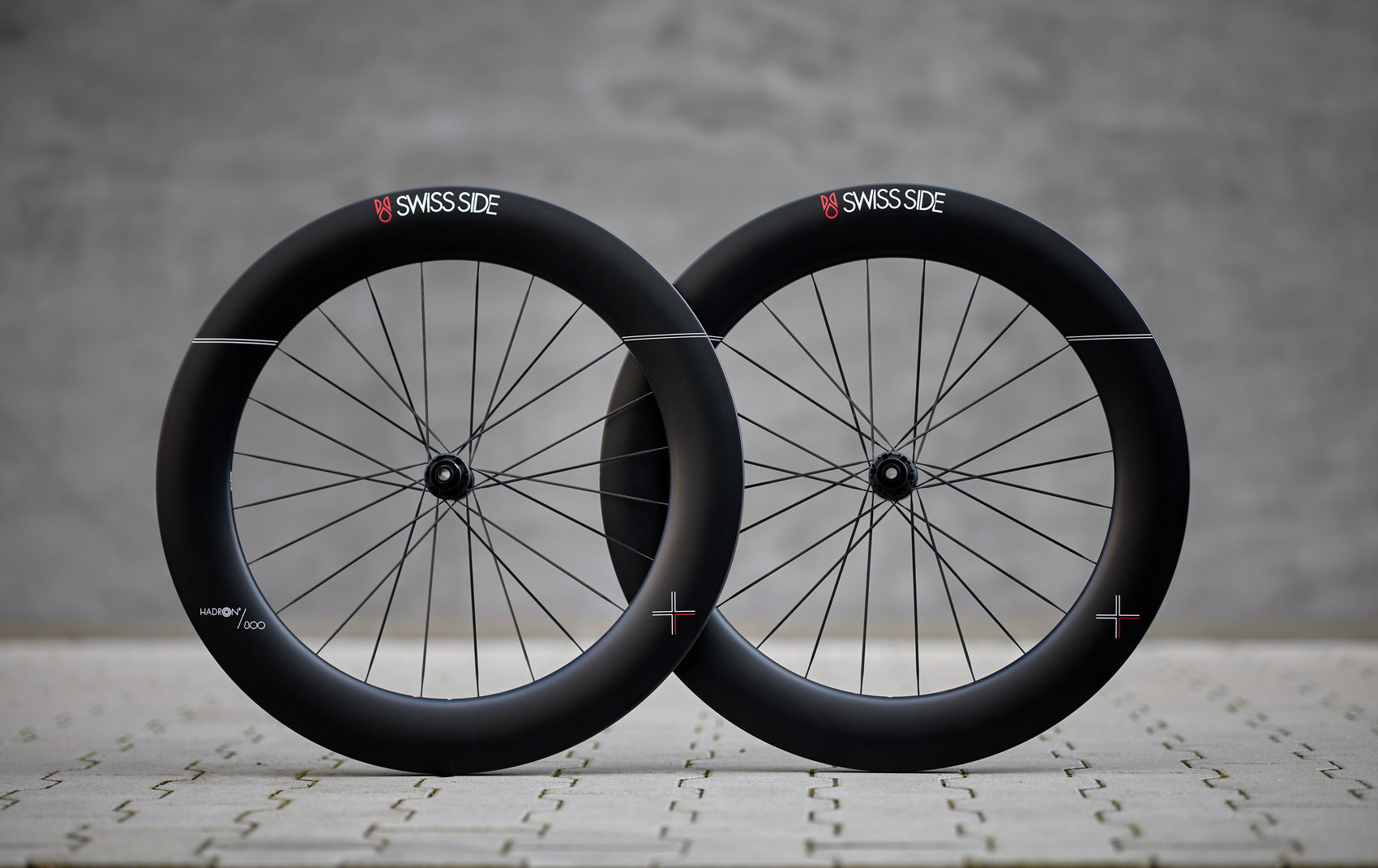

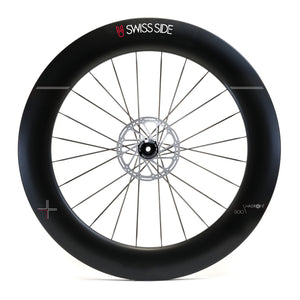

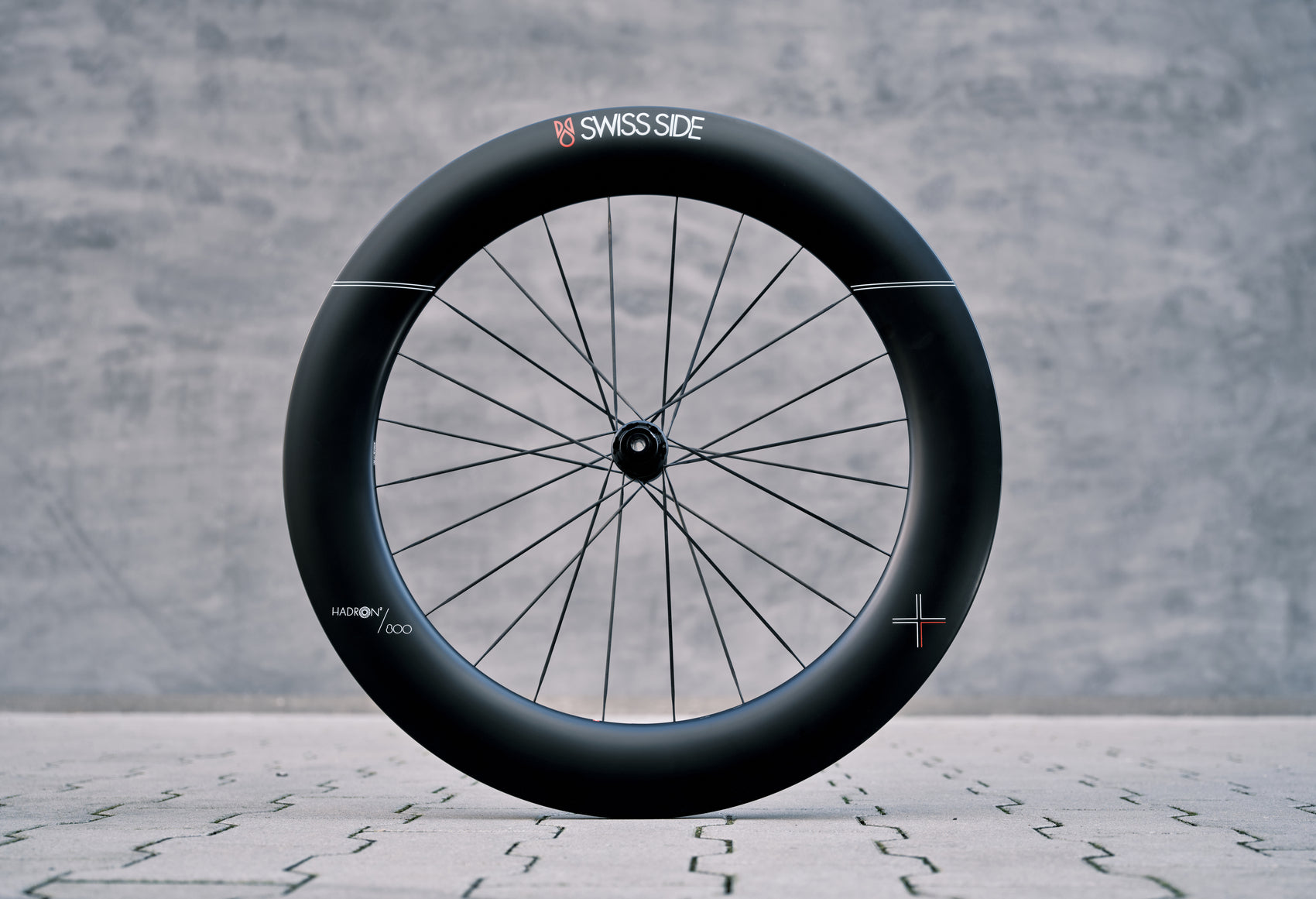

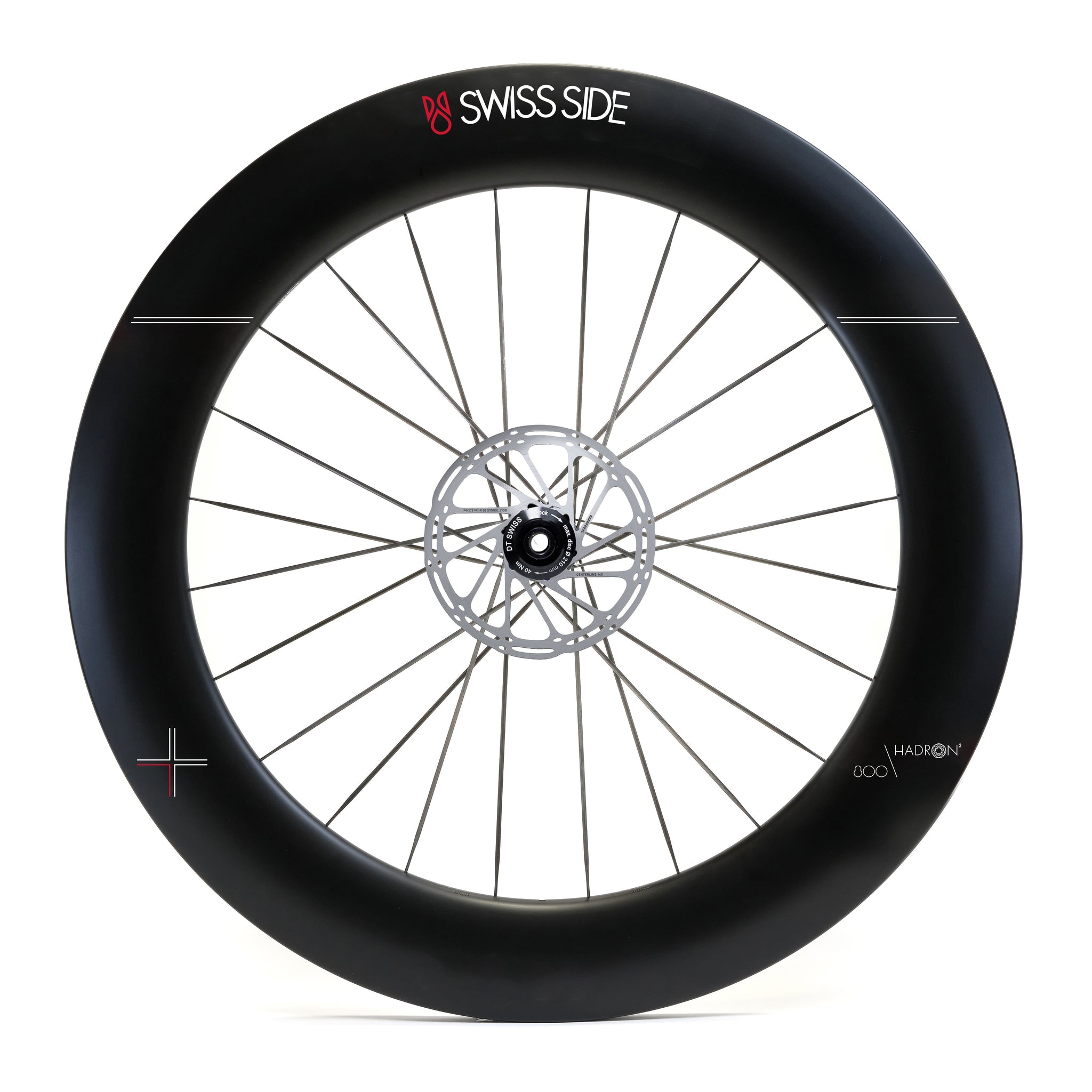

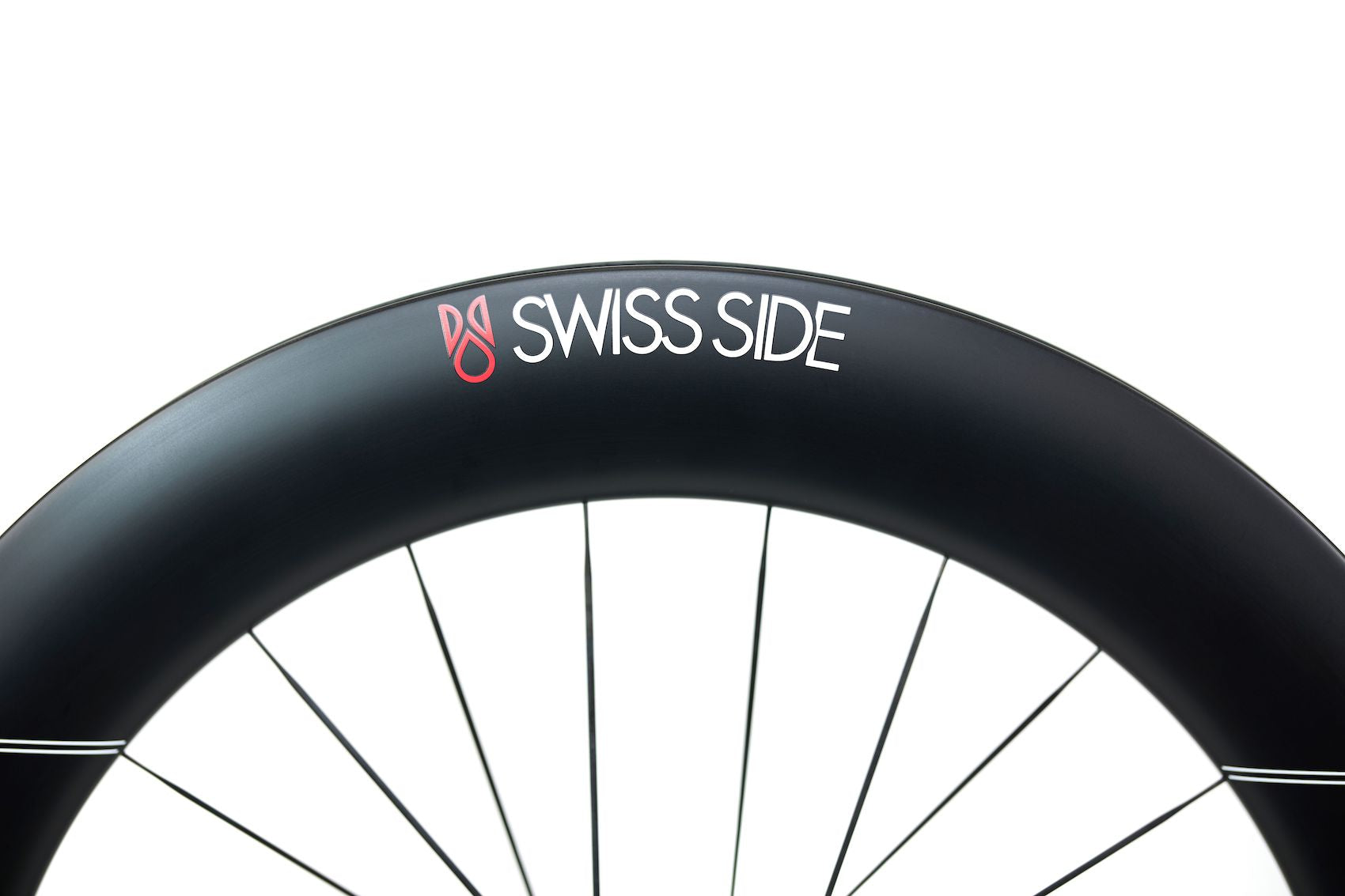

HADRON² Ultimate 800 Disc Brake

Fast, faster, fastest! And even faster than the previous Ironman World Championship winning HADRON Ultimate 800 model. Specific for time trial and triathlon racing, the 80mm deep profile is engineered to deliver maximum speed and thrust in medium to low wind conditions whilst maintaining predictable, stable handling in the gusty conditions, comparible with competitor wheels 20mm shallower. The HADRON² Ultimate 800 is the world's lowest drag, maximum sailing effect aero wheel, setting the new benchmark for aerodynamic performance. Full carbon clincher, tubeless ready construction. UCI approved. IIncluding lifetime warranty for material and workmanship defects and a Fair-Share-Policy for any other riding damage.

Color options available:


Hadron Ultimate Decals

Configure / Buy
Want to buy local?
View Specs
HADRON² Ultimate Rear Wheel
HADRON² Ultimate Front Wheel

Brakes / Compability
Rim Depth
Add to Cart

All the products

Brakes
OUT OF STOCK
Compatibility
Front Wheel
OUT OF STOCK
OUT OF STOCK
OUT OF STOCK
Rear Wheel
OUT OF STOCK
OUT OF STOCK
OUT OF STOCK
OUT OF STOCK
ADD CONTINENTAL GP5000 TYRES & TUBES
ADD CONTINENTAL GP5000 TYRES & TUBES
Front Wheel

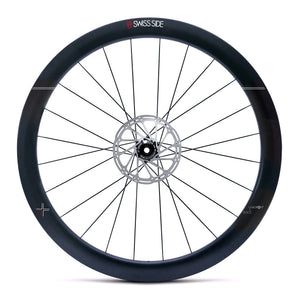

HADRON² Ultimate 500 Disc Brake
$830.00 USD
Product available.
Rear Wheel
HADRON² Ultimate 500 Disc Brake
$1,014.00 USD
Product available.
EUR 0
Total price for all items including VAT.
Total price for all items excluding VAT.
All products are shipped from our EU warehouse. Delivery to Germany is outside of the EU so 0% VAT is applicable. The local authorities may charge you VAT & import duties upon delivery.
Prices exclude shipping costs which are calculated at checkout.

Specs

Weight / Rim Front Wheel Rear Wheel Wheel Set Aero Profile Height Max. Rim Width Brake Track Width
HADRON² Ultimate 500 Disc Brake
674g 804g 1478g 50mm 27mm N/A

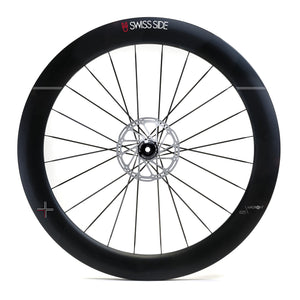

HADRON² Ultimate 625 Disc Brake
776g 906g 1682g 62.5mm 30mm N/A
HADRON² Ultimate 800 Disc Brake
811g 939g 1750g 80mm 32mm N/A
HADRON² DISC Rear Wheel Disc Brake
N/A 1100g N/A N/A N/A N/A

Description

The new unmatched benchmark for aero wheel performance. Minimum Aero Drag with Maximum Aero Stability in the wind. 20mm inner rim width, tubeless ready carbon clincher wheels for best possible rolling resistance and to accomodate also wider tyres. Engineered with the continuous learning since Day-1 at Swiss Side, combining our latest aerodynamic research methods from our Formula 1 background and derived technolgies. Compared to the HADRON Ultimate, this latest HADRON2 Ultimate rim shape reduces steering moment by a further 26% for increased stabilty in the windy and gusty conditions, whilst reducing the aero drag by a 10 - 20% depending on the rim depth, also thanks to the new Aerolite II spoke developed in collaboration with DT Swiss. Built with the latest top level 180 DICUT hub, SINC ceramic bearings and the highest quality production through our partnership with DT Swiss, there is zero compromise on performance and quality so you can set new personal best times on your favorite courses.





Compatibility

Shimano 10, 11, 12 speed freehub as standard. Also SRAM 10, 11 speed compatible. Free hub kits are available for order separately: Campagnolo 10,11,12 speed, Campagnolo N3W 13-speed, and 12-speed XDR Driver.

Hub

DT Swiss 180 DICUT to Swiss Side specification. Rear hub internals use 240s ratchet system in 180 DICUT hub shell, except for DISC rear wheel which uses the Ratchet EXP system. Disc Brake Interface: Disc Center Lock; Axle System as delivered: 12 x 100mm thru axle front; 12 x 142mm thru axle rear; Disc brake wheel hubs are also supplied with interchangeable end caps for 5mm x 100mm disc brake QR front axle, and 5mm x 135mm disc brake QR rear axle. For DISC Rear Wheel: DT Swiss 180 DICUT, 36T Ratchet EXP. Disc Brake Interface: Disc Center Lock; 12/142mm Axle System.

Spokes

DT Swiss Aerolite II spokes and Aero Comp II Straightpull spokes with DT Swiss pro lock hidden aluminium nipples.
Front Disc Brake (2-cross pattern): 24 spokes.
Rear Disc Brake (2-cross pattern): 24 spokes.

Bearings

  • SINC ceramic bearings
  • Made of extremely tough and wear- and corrosion-resistant ceramic material
  • Reduces rolling resistance to absolute minimum
  • Guarantees greater durability than conventional ball bearings

Additional Info

Shipping

  • Shipping costs are in addition to the pricing shown. Cost effective shipping is calculated based on your region at the checkout.
  • All products ship from our EU warehouse located in Poland and/or Germany.
  • For EU customers, all pricing shown includes local VAT. Courier delivery time is typically 3-5 days.
  • For international customers, including Switzerland and non-EU countries, all pricing shown is without VAT. Import duties and taxes (VAT) may be charged separately by your country’s authorities upon receiving your shipment. International delivery times vary depending on the shipping option chosen. Courier deliver is typically 3-15 days worldwide.
  • The Swiss Side HADRON² DISC Rear Wheel for Rim Brake is not for sale or use in the USA and/or Canada. Any orders will be cancelled.

Package Includes

Tubeless ready rim tape (pre-installed), Valve extension, Tubeless valve, QR skewers.



For full carbon DISC Rear Wheel: Tubeless valve, valve spacer, pump adapter, spare valve cover, wheel bag.



Disc brake wheels DO NOT come with the “lock nut” / disc brake rotor lock ring– this is specific to the bike.

Tyre Size

All tyres from 25mm to 64mm can be used on this rim. We recommend using a 25mm tyre on the front. If  additional comfort is desired, a 28mm tyre can be used  on the rear. We do not recommend tyres greater than 30mm width for maximising aerodynamic performance.

Rider Weight / Safety Notice

The maximum total system weight (bike + rider) for the HADRON² Ultimate disc brake wheelset is 110kg. Tyre pressures of 120psi should not be exceeded.

User Manual

Download User Manual
User Manual DISC Rear Wheel RB

Wheel Spec Comparison

Profile Depth
i

HADRON² Ultimate 500
6
HADRON² Ultimate 625
8
HADRON² Ultimate 800
9
HADRON² DISC Rear Wheel Disc Brake
10

Aero Drag
i

HADRON² Ultimate 500
8
HADRON² Ultimate 625
9
HADRON² Ultimate 800
10
HADRON² DISC Rear Wheel Disc Brake
10

Aero Wind Stability
i

HADRON² Ultimate 500
10
HADRON² Ultimate 625
9
HADRON² Ultimate 800
7
HADRON² DISC Rear Wheel Disc Brake
6

Weight
i

HADRON² Ultimate 500
8
HADRON² Ultimate 625
7
HADRON² Ultimate 800
6
HADRON² DISC Rear Wheel Disc Brake
5

Stiffness
i

HADRON² Ultimate 500
8
HADRON² Ultimate 625
8
HADRON² Ultimate 800
8
HADRON² DISC Rear Wheel Disc Brake
8

PERFORMANCE DELTAS FOR WHEEL COMBINATIONS

Wind Tunnel Data measured on 2018 model Canyon Speedmax CF SLX at 45km/h

Wheel Setup Front / Rear Drag (W) DIFFERENCE (W) STEERING MOMENT (Nm) DIFFERENCE (%)
800/DISC 56.10 -1.80 1.29 0%
800/800 57.90 0.00 1.29 0%
625/800 59.00 1.10 0.97 -25%
625/625 59.20 1.30 0.97 -25%
500/800 60.70 2.80 0.71 -45%
500/625 61.10 3.20 0.71 -45%
500/500 61.70 3.80 0.71 -45%

*Performance difference relative to the 'aero setup' - 800 / 800

Aero Performance Chart
i

Wind Stability Chart
i

Time Benefits

Speed Power Drag Reduction 40km 90km 180km
HADRON² Ultimate 500
45km/h
35km/h 		350W
180W 		14.2W
6.7W 		0m 48s
1m 00s 		1m 49s
2m 26s 		3m 38s
4m 31s
HADRON² Ultimate 625
45km/h
35km/h 		350W
180W 		16.7W
7.9W 		0m 57s
1m 11s 		2m 08s
2m 40s 		4m 17s
5m 20s
HADRON² Ultimate 800
45km/h
35km/h 		350W
180W 		18W
8.5W 		1m 02s
1m 17s 		2m 19s
2m 53s 		4m 37s
5m 45s
HADRON² DISC Rear Wheel / FW 800
45km/h
35km/h 		350W
180W 		19.8W
9.3W 		1m 08s
1m 24s 		2m 33s
3m 10s 		5m 06s
6m 20s

*Drag reduction given relative to standard road wheel set.
`

Wheel Mapping

Tyre of Riding Time Trial Road Racing Training Alps
HADRON² Ultimate 500
HADRON² Ultimate 625
HADRON² Ultimate 800
HADRON² DISC Rear Wheel Disc Brake
